MR-SPF4000 TWIN (Version 4)

Single Phase - IP20 - High Frequency

Capacity: 4kW

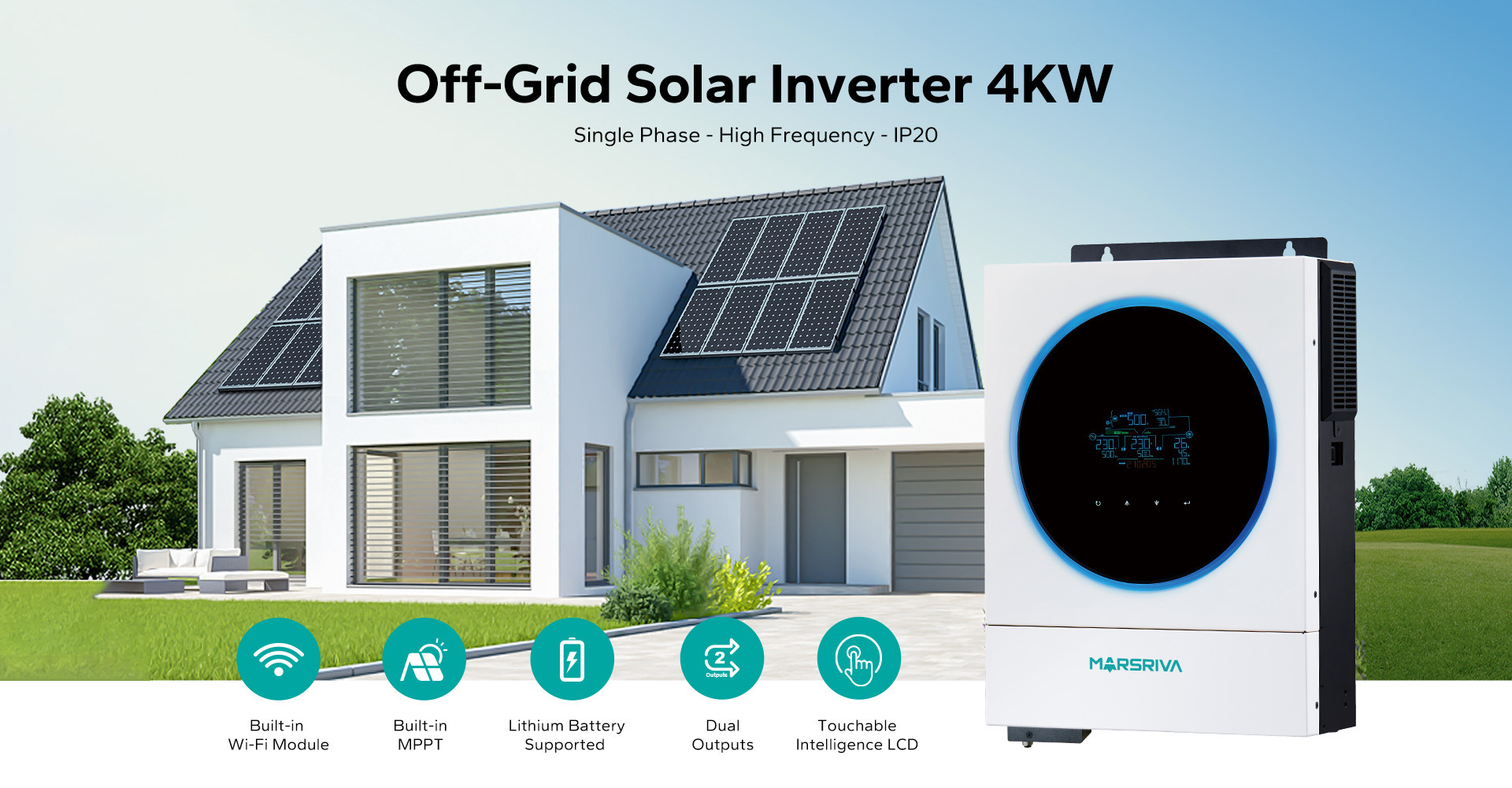

Solar Inverter 4KW

Single Phase - IP20 - High Frequency

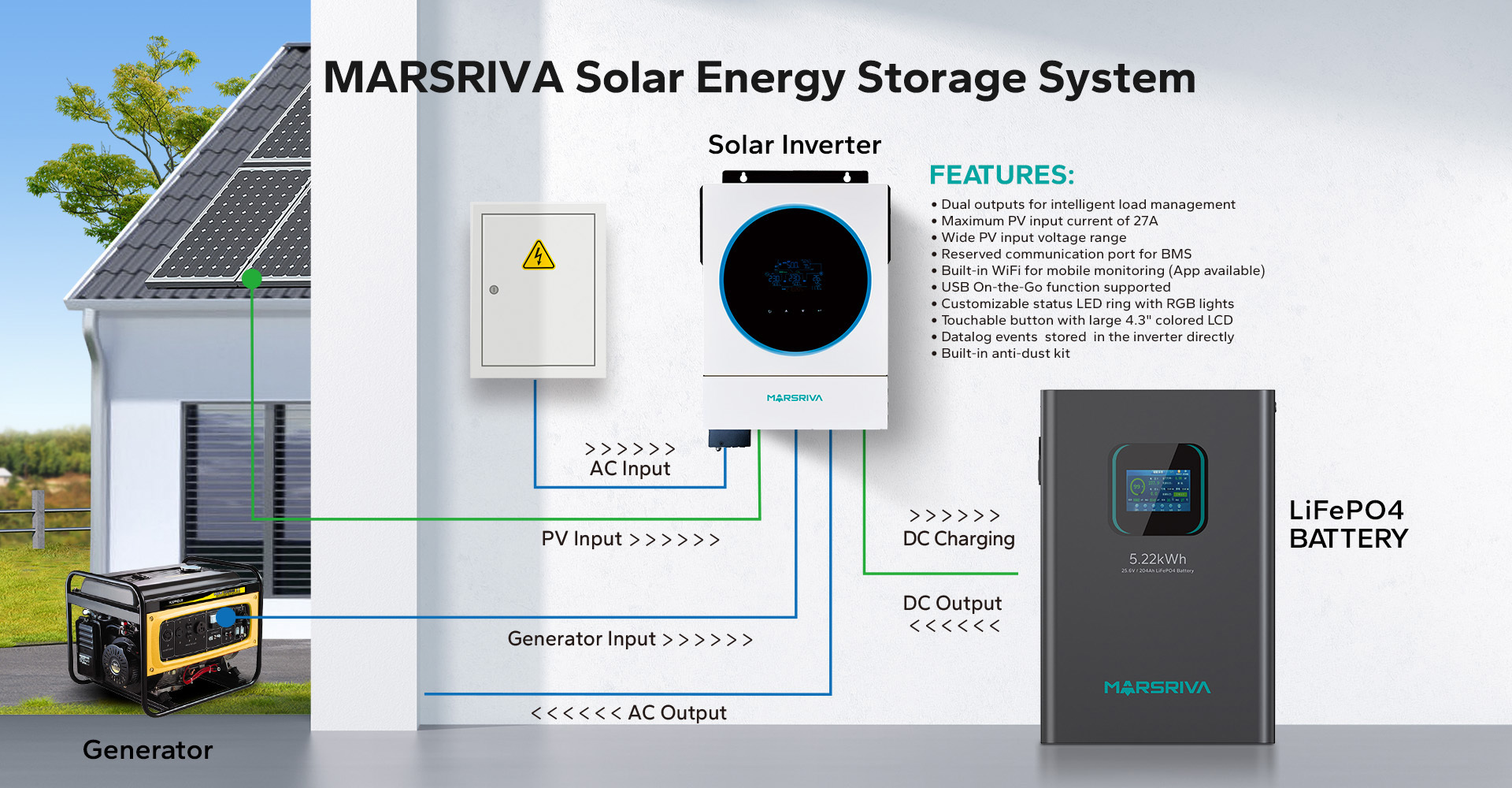

● Dual output for smart load management
● Maximum PV input current 27A
● Customizable status LED ring with RGB lights
● Touchable button with large 4.3" colored LCD
● Built-in Wif for mobile monitoring (Android/IOS App available)
● Supports USB On-the-Go function
● Data log event stored in the inverter
● Reserved communication port (RS485, CAN-BUS or RS232) for BMS
● Battery independent design
● Battery equalization extends lifecycle
● Enhanced charging power
● Built-in anti-dust kit

Leave a message

隐藏域元素占位

Overview
Specifications
Downloads
Support
概要

Solar Inverter 4KW

Single Phase - IP20 - High Frequency

Expand All

MR-SPF4000 (Version 4)

Model		MR-SPF4000 TWIN (Version 4)
RATED POWER		4000VA / 4000W
Output
Output Voltage Regulation		230VAC ± 5%
Nominal Output Frequency		50Hz / 60Hz
Wave Form		Pure sine wave
Transfer Time		10ms (For PC); 20ms (For Home Appliances)
Surge Power		8000VA
Peak Efficiency		95% at Line mode, 93% at Inverter mode
Input
Nominal Input Voltage		230VAC
Input Voltage Range (Selectable)		170 – 280VAC (For PC); 90 – 280VAC (For Home Appliances)
Nominal Input Frequency		50Hz / 60Hz (Auto sensing)
Battery
Nominal Battery Voltage		24VDC
Floating Charging Voltage		27VDC
Overcharge Protection		33VDC
AC CHARGING & MPPT SOLAR CHARGING
AC Charging Algorithm		3 step
Max. PV Array Power		5000W
MPPT Operating Voltage Range		60VDC – 450VDC
Max. PV Array Open Circuit Voltage		500VDC
Max. PV Input Current		27A
Max. AC Charging Current		100A
Max. Charging Current		120A (AC charging plus solar charging)
PHYSICAL & COMMUNICATION
Dimension, D x W x H (mm)		119 × 313.6 × 457.5
Net Weight (kg)		10

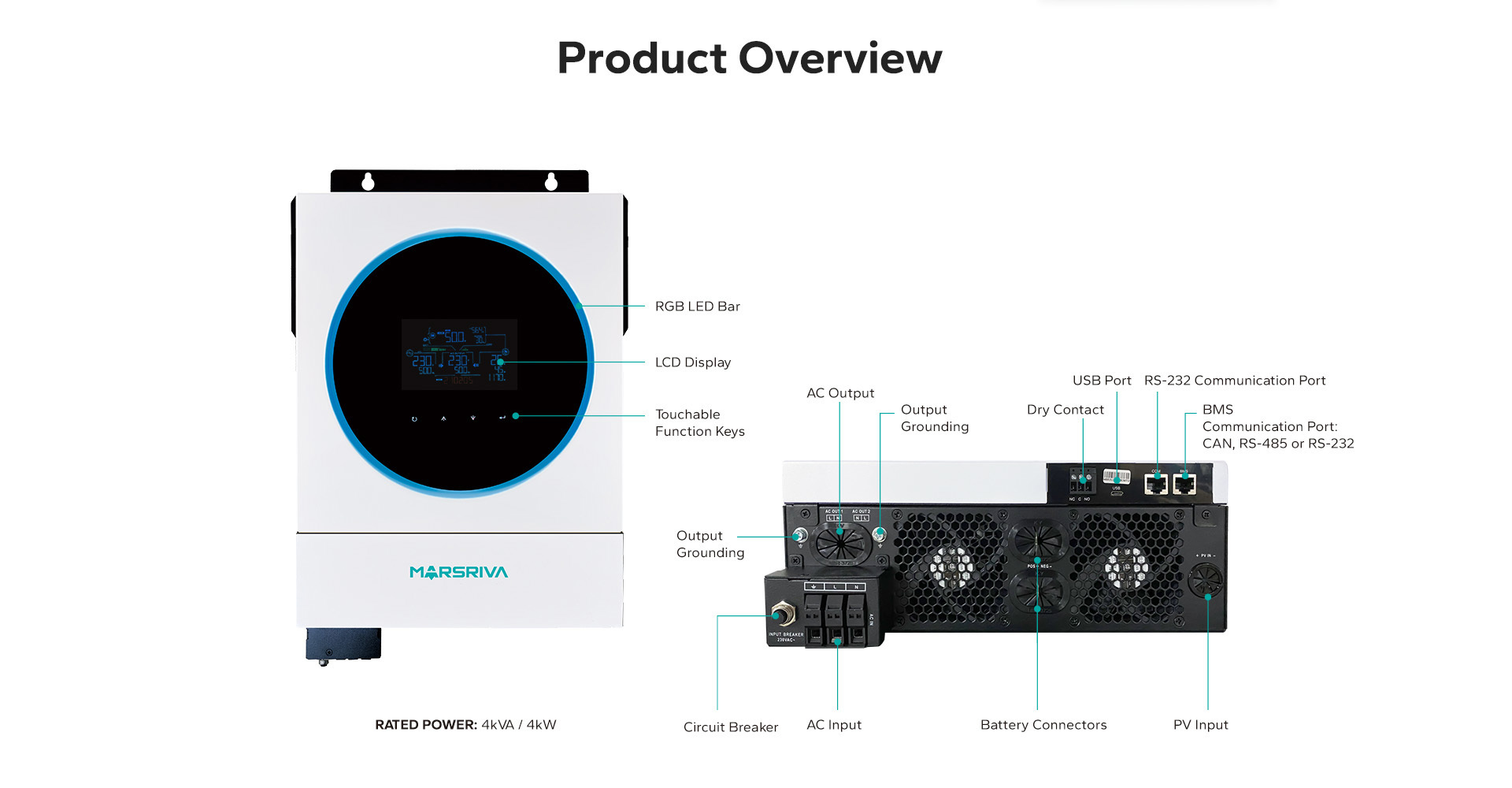

Communication Interface		USB, RS232, BMS, WiFi, Dry-contact

Environment

Environment
Audible Noise		Less than 40dB (1 meter from surface)
Operating Temperature		0°C – 40°C
Relative Humidity		0 – 95% (Non-condensing)

Specifications are subject to change without notice, and all product drawings are for reference only. Consult MARSRIVA for the latest design and specifications.
