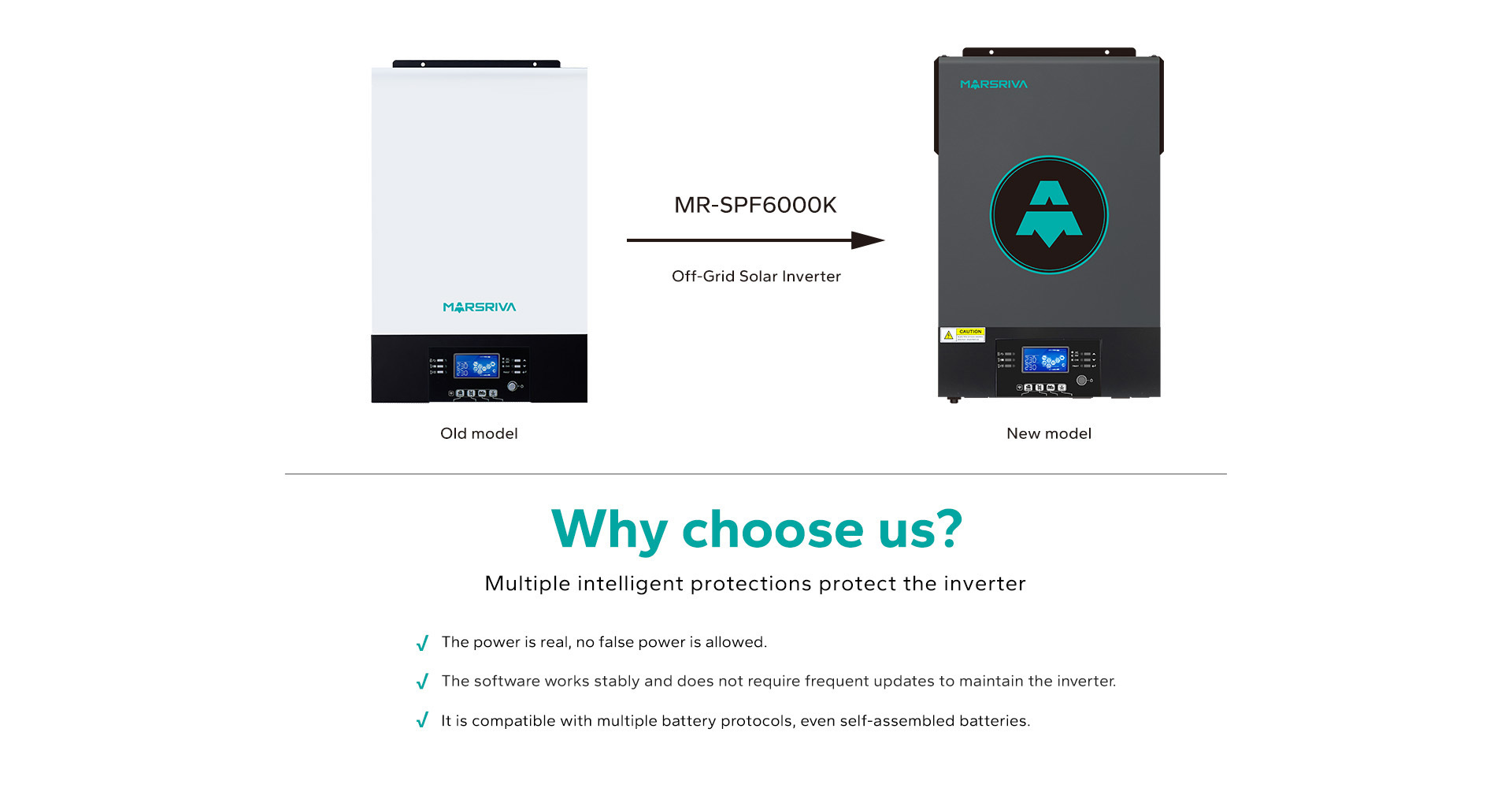

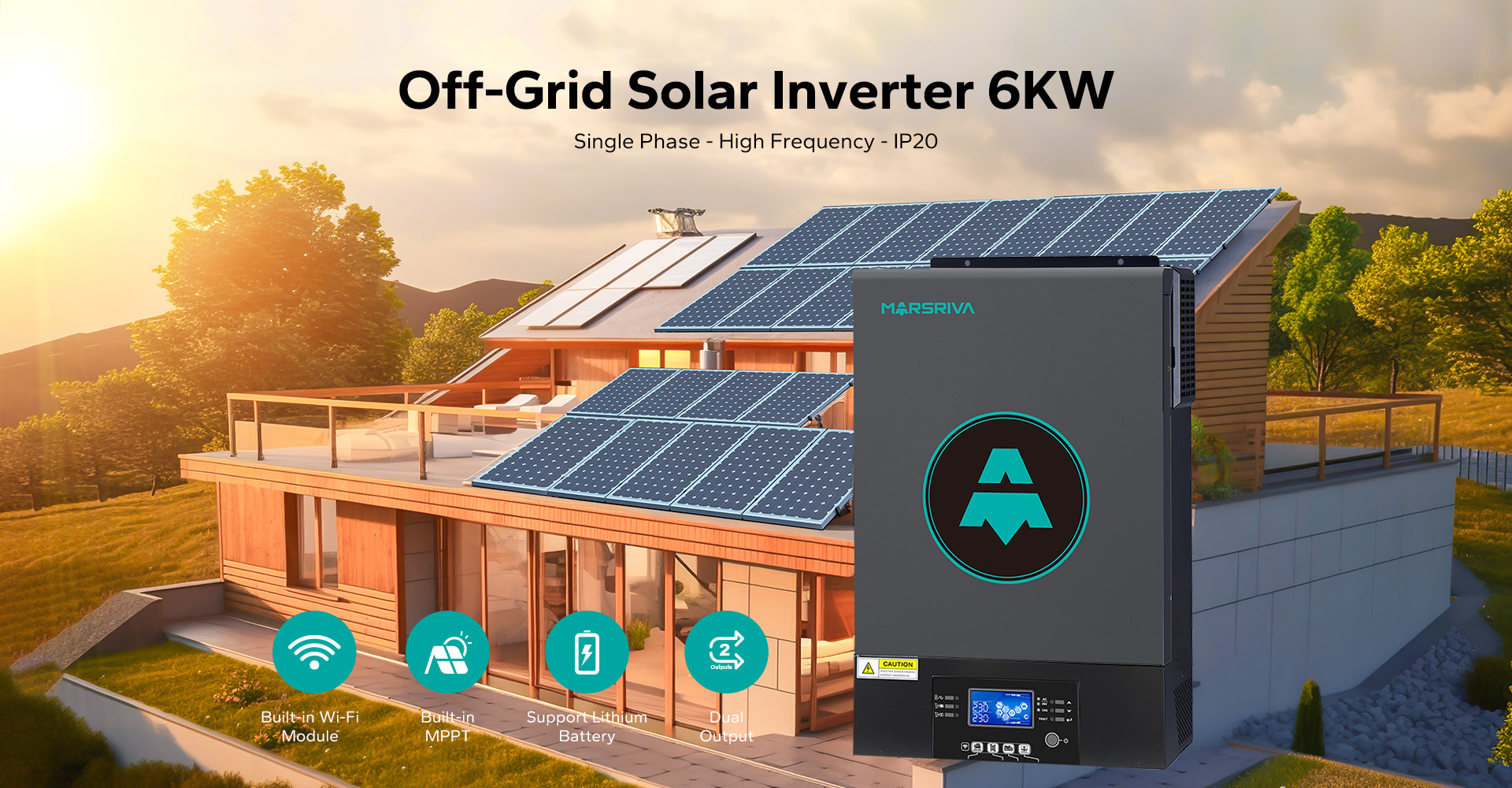

MR-SPF6000K
Single Phase - IP20 - High Frequency
RATED POWER: 6kVA / 6kW
-
-

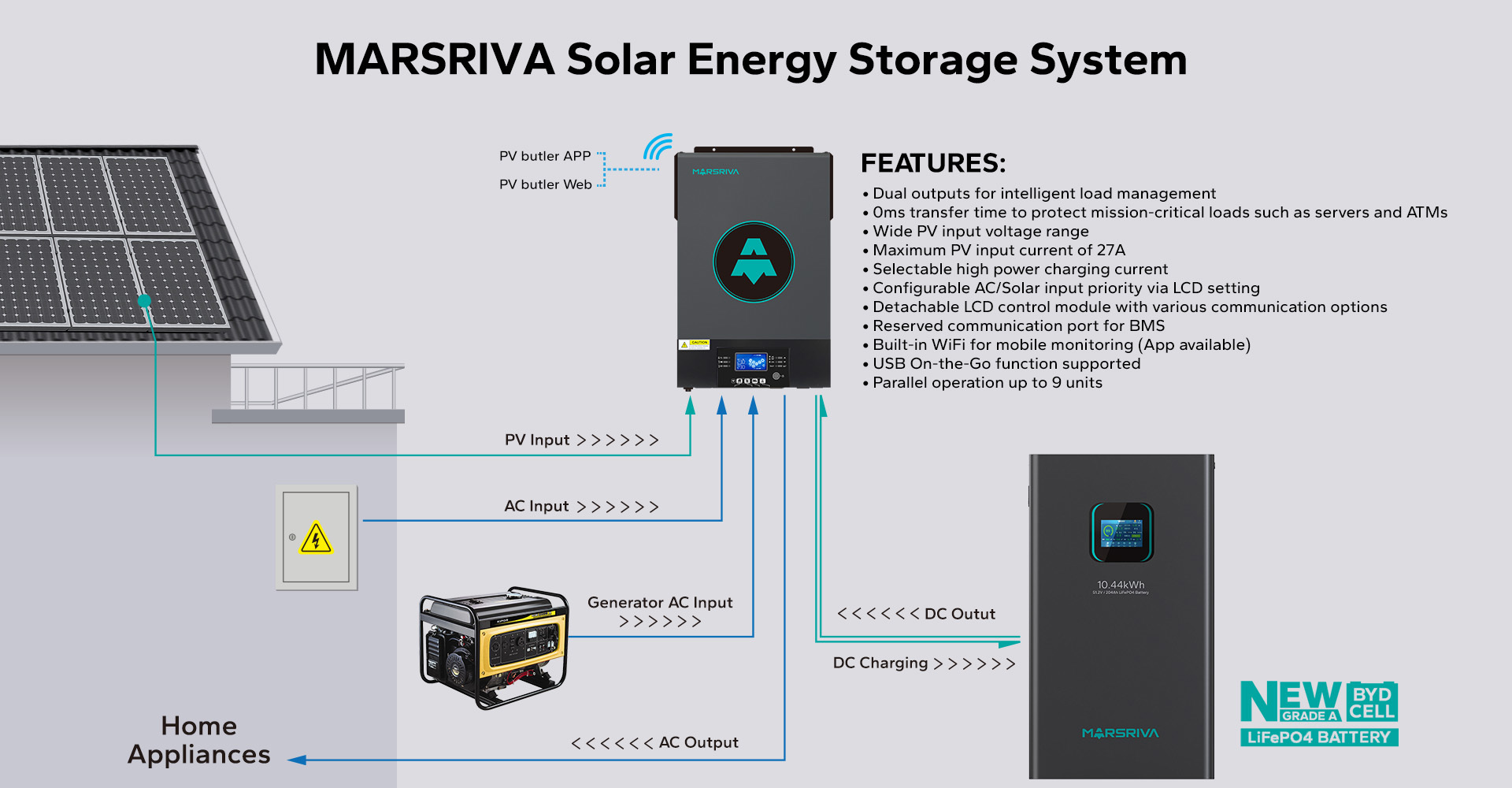

•Dual outputs, for smart load management
•Maximum PV input current increases to 27A
•Zero (0ms) transfer time to protect mission-critical loads
• High PV input voltage range

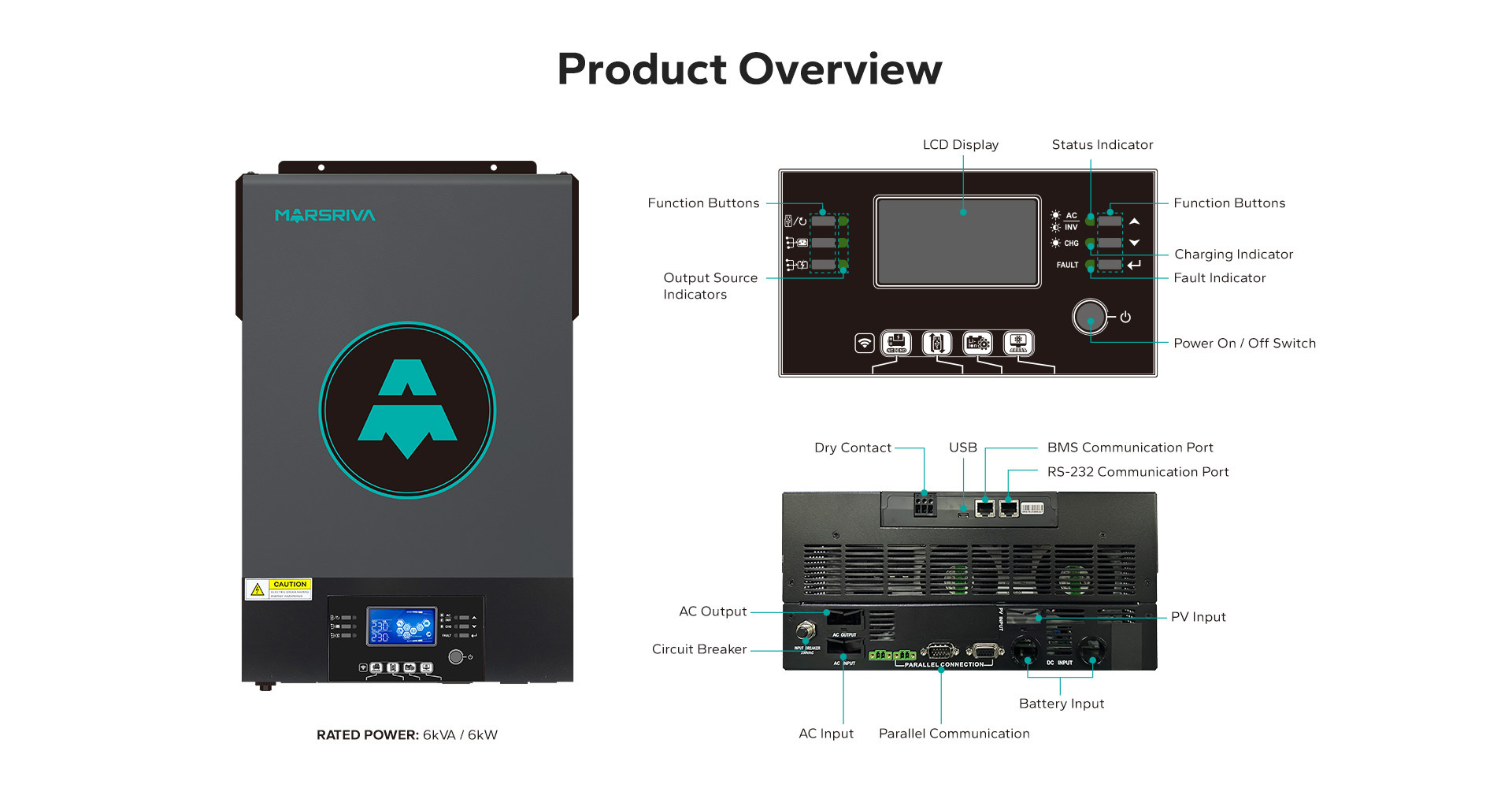

• Detachable LCD control module with multiple communications
• Selectable high power charging current
• Built-in Wi-Fi for mobile monitoring (Android/IOS App available)
• Configurable AC/Solar input priority via LCD setting
• Reserved communication port for BMS (RS485 or CAN-BUS or RS232)
• USB On-the-Go function
• Parallel operation up to 9 units
隐藏域元素占位
- Overview
- Specifications
- Downloads
- Support
- 概要
Expand All
| Model | MR-SPF6000K | ||||||
| RATED POWER | 6000VA / 6000W | ||||||
| PARALLEL CAPABILITY | Yes, 9 units | ||||||
| Output | |||||||
| Output Voltage Regulation | 230VAC ± 5% | ||||||
| Nominal Output Frequency | 50Hz / 60Hz | ||||||
| Wave Form | Pure sine wave | ||||||
| Transfer Time | 0ms (Line mode to Battery mode); 4ms (Inverter mode to Battery mode) | ||||||
| Surge Power | 2* rated power for 5 seconds | ||||||
| Peak Efficiency | 94% (Line mode), 92% (Battery mode), 98% (ECO/Bypass mode) | ||||||
| Harmonic Distortion | ≤3% THD (Linear Load); ≤5% THD (Non-linear Load) | ||||||
| Input | |||||||
| Nominal Input Voltage | 230VAC | ||||||
| Input Voltage Range (Selectable) | 110 – 280VAC | ||||||
| Nominal Input Frequency | 50Hz / 60Hz (Auto sensing) | ||||||
| Battery | |||||||
| Nominal Battery Voltage | 48VDC | ||||||
| Floating Charging Voltage | 54VDC | ||||||
| Overcharge Protection | 66VDC | ||||||
| AC CHARGING & MPPT SOLAR CHARGING | |||||||
| AC Charging Algorithm | 3 step | ||||||
| Max. PV Array Power | 6000W | ||||||
| MPPT Operating Voltage Range | 120VDC – 430VDC | ||||||
| Max. PV Array Open Circuit Voltage | 500VDC | ||||||
| Max. PV Input Current | 27A | ||||||
| Max. AC Charging Current | 120A | ||||||
| Max. Charging Current | 120A (AC charging plus solar charging) | ||||||
| PHYSICAL & COMMUNICATION | |||||||
| Dimension, D x W x H (mm) | 140 × 295 × 468 | ||||||
| Net Weight (kg) | 12 | ||||||
| Communication Interface | USB, RS232, BMS, WiFi, Dry-contact | ||||||
