MR-SPF8000M TWIN (Version 1)
Single Phase - IP20 - High Frequency
Capacity: 8kW
-
-
• Dual outputs, for smart load management
• Maximum PV input current increases to 27A
• Status indication with RGB lights
• Built-in Wi-Fi for mobile monitoring (Android/iOS App available)
• Supports USB On-the-Go function
• Reserved communication port for BMS (RS485, CAN-BUS or RS232)
• Replaceable fan design for ease of maintenance
• Battery independent design
• Selectable high power charging current
• Compatible to Utility Mains or generator input
• Built-in anti-dust kit
• Parallel operation with 6 units
隐藏域元素占位

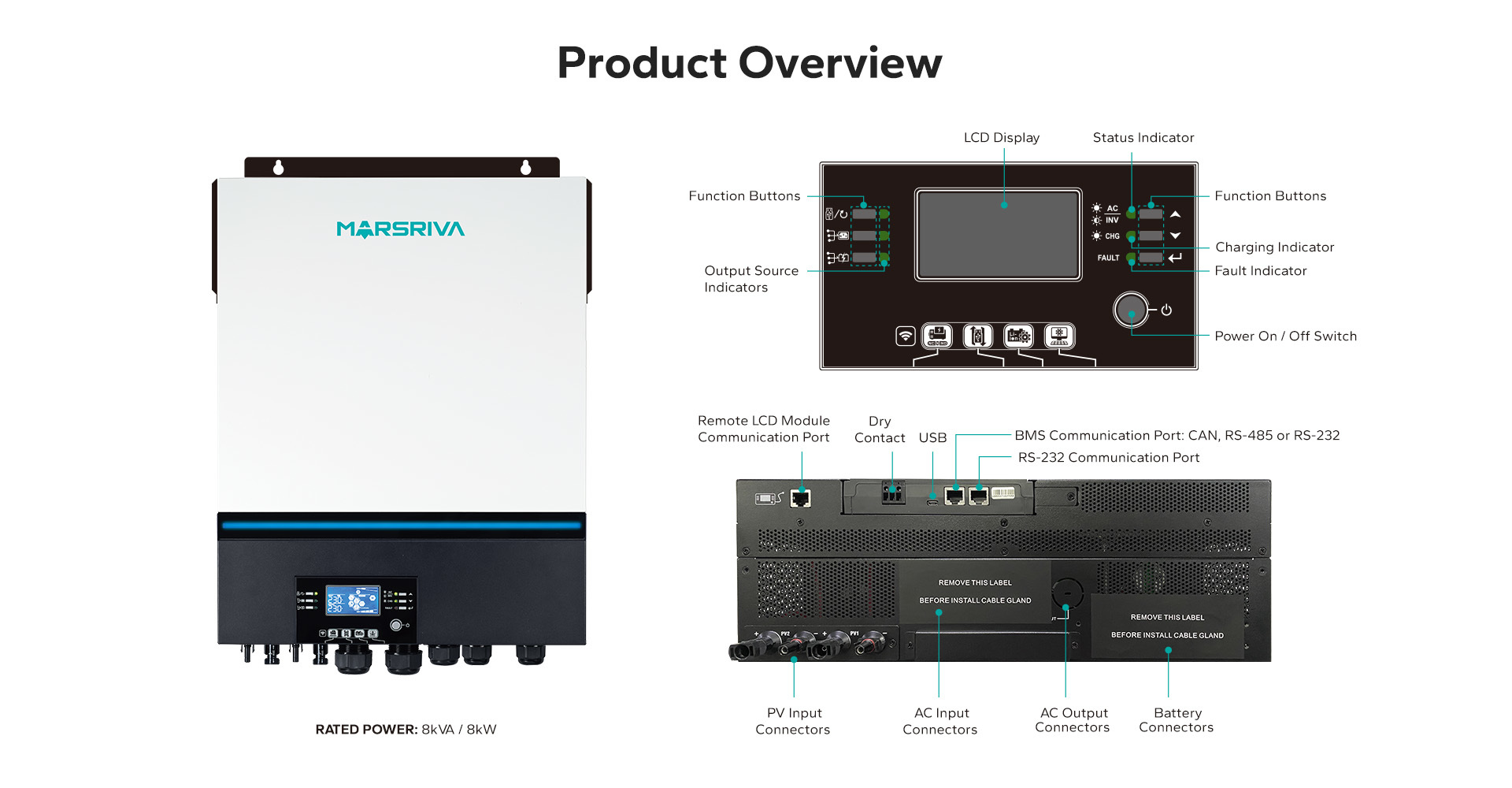

- Overview
- Specifications
- Downloads
- Support
- 概要
Expand All
| Model | MR-SPF8000M TWIN (Version 1) | ||||||
| RATED POWER | 8000VA / 8000W | ||||||
| PARALLEL CAPABILITY | Yes, 6 units | ||||||
| Output | |||||||
| Output Voltage Regulation | 230VAC ± 5% | ||||||
| Nominal Output Frequency | 50Hz / 60Hz | ||||||
| Wave Form | Pure sine wave | ||||||
| Transfer Time | 10ms (For PC); 20ms (For Home Appliances) | ||||||
| Surge Power | 16000VA | ||||||
| Peak Efficiency | 95% at Line mode, 93% at Inverter mode | ||||||
| Optional DC Output | 12VDC ± 7%, 100W | ||||||
| Input | |||||||
| Nominal Input Voltage | 230VAC | ||||||
| Input Voltage Range (Selectable) | 170 – 280VAC (For PC); 90 – 280VAC (For Home Appliances) | ||||||
| Nominal Input Frequency | 50Hz / 60Hz (Auto sensing) | ||||||
| Battery | |||||||
| Nominal Battery Voltage | 48VDC | ||||||
| Floating Charging Voltage | 54VDC | ||||||
| Overcharge Protection | 66VDC | ||||||
| AC CHARGING & MPPT SOLAR CHARGING | |||||||
| AC Charging Algorithm | 3 step | ||||||
| Max. PV Array Power | 8000W (4000W*2) | ||||||
| MPPT Operating Voltage Range | 90VDC – 450VDC | ||||||
| Max. PV Array Open Circuit Voltage | 500VDC | ||||||
| Max. PV Input Current | 27A*2 (MAX. 40A) | ||||||
| Max. AC Charging Current | 120A | ||||||
| Max. Charging Current | 120A | ||||||
| PHYSICAL & COMMUNICATION | |||||||
| Dimension, D x W x H (mm) | 147.4 × 432.5 × 553.6 | ||||||
| Net Weight (kg) | 18.4 | ||||||
| Communication Interface | USB, RS232, BMS, WiFi, Dry-contact | ||||||
