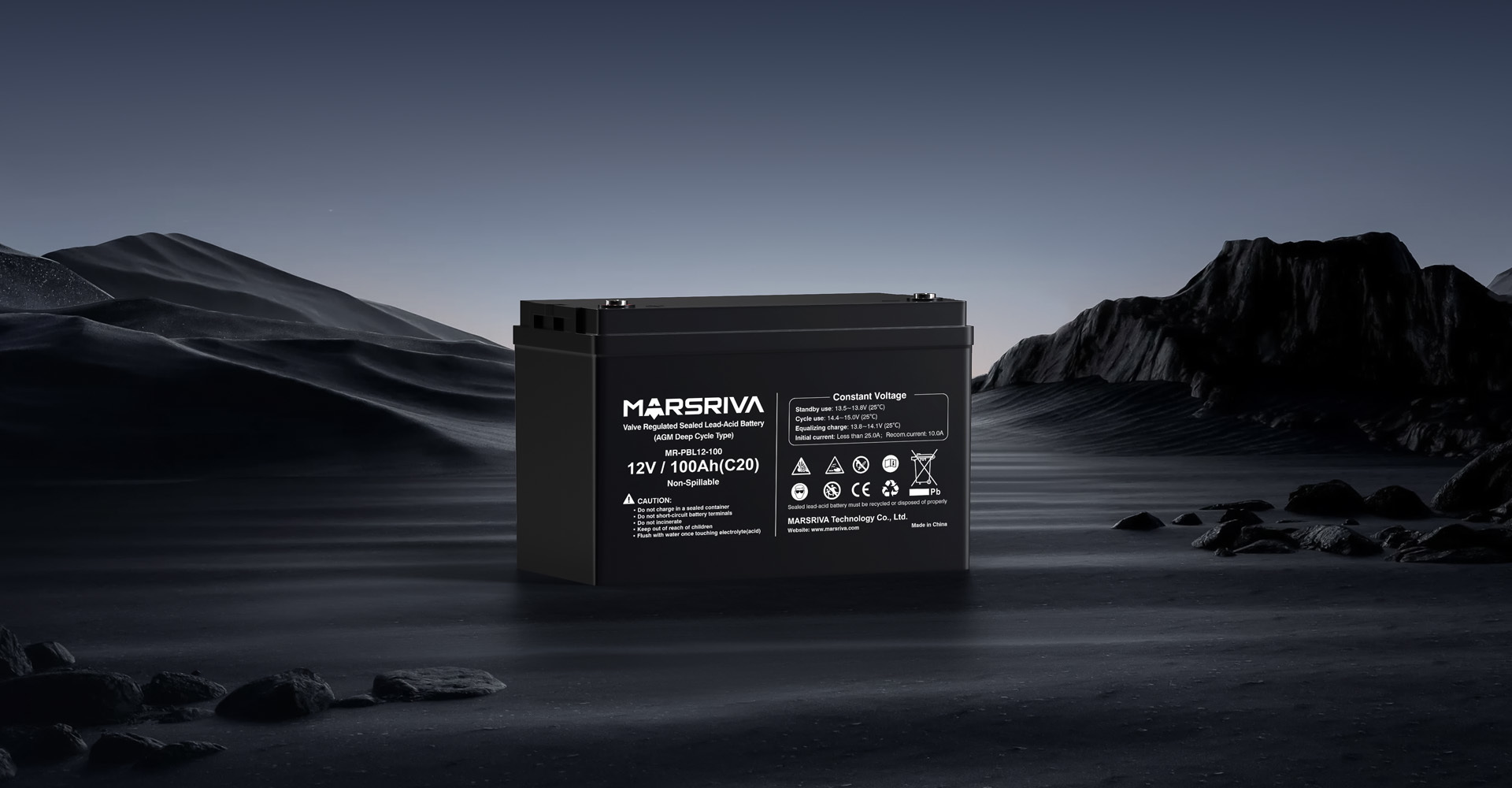

MR-PBL12-100
Valve Regulated Sealed Lead-Acid Battery
12V / 100Ah(C20)
-
Valve Regulated Sealed Lead-acid Battery
MR-PBL12-100 | 12V / 100Ah
-
• Maintenance-free with precision sealing technology and a valve-sealed design eliminating free electrolyte
• High corrosion-resistant performance: Pb-Ca multi-alloy grid
• High energy density and power density
• Optimized capability of instant high-current discharging
• Long cycle life and outstanding deep cycle discharge ability
• Excellent charge acceptance capability
• Excellent deep cycle discharge capability
• Low self-discharge rate
隐藏域元素占位
- Overview
- Specifications
- Downloads
- Support
- 概要
-
Valve Regulated Sealed Lead-acid Battery
MR-PBL12-100 | 12V / 100Ah
Expand All
|
Model |
MR-PBL12-100 | MR-PBL12-150 | MR-PBL12-200 | |
| Nominal Voltage | 12V | 12V | 12V | |
| Nominal Capacity | 100Ah | 150Ah | 200Ah | |
| Rated Capacity | 100Ah (20hr, 5.0A, 10.5V) | 150Ah (20hr, 7.5A, 10.5V) | 200Ah (20hr, 10.0A, 10.5V) | |
| 76.2Ah (3hr, 25.4A, 10.2V) | 121.5Ah (3hr, 40.5A, 10.2V) | 164.1Ah (3hr, 54.7A, 10.2V) | ||
| 62.6Ah (1hr, 62.6A, 9.6V) | 93Ah (1hr, 93.0A, 9.6V) | 135Ah (1hr, 135.0A, 9.6V) | ||
| Terminal | M8 | M8 | M8 | |
| Approx. Internal Resistance | 5.2 mΩ | 3.8 mΩ | 4.0 mΩ | |
| Approx. Weight | 28.0kg | 42.5kg | 57.0kg | |
| Container Material | ABS | ABS | ABS | |
| Design Life | 10 years | 10 years | 10 years | |
| Max. Discharge Current | 1200A (5sec) | 1800A (5sec) | 2400A (5sec) | |
| Float Charging Voltage | 13.5V – 13.8V @25℃ | |||
| Cycle Use Voltage | 14.4V – 15V @25℃ | |||
| Nominal Operating Temperature Range | 25℃±5℃ | |||
| Operating Temperature Range | Discharge: -20℃ to 50℃ (-68°F to 122°F) | |||
| Charge：-20℃ to 50℃ (-68°F to 122°F) | ||||
| Storage: -20℃ to 50℃ (-68°F to 122°F) | ||||
| Self Discharge | 3% of capacity declined per month at 25℃ | |||
Specifications are subject to change without notice, and all product drawings are for reference only. Consult MARSRIVA for the latest design and specifications.
