MR-LFP12-100-WMD

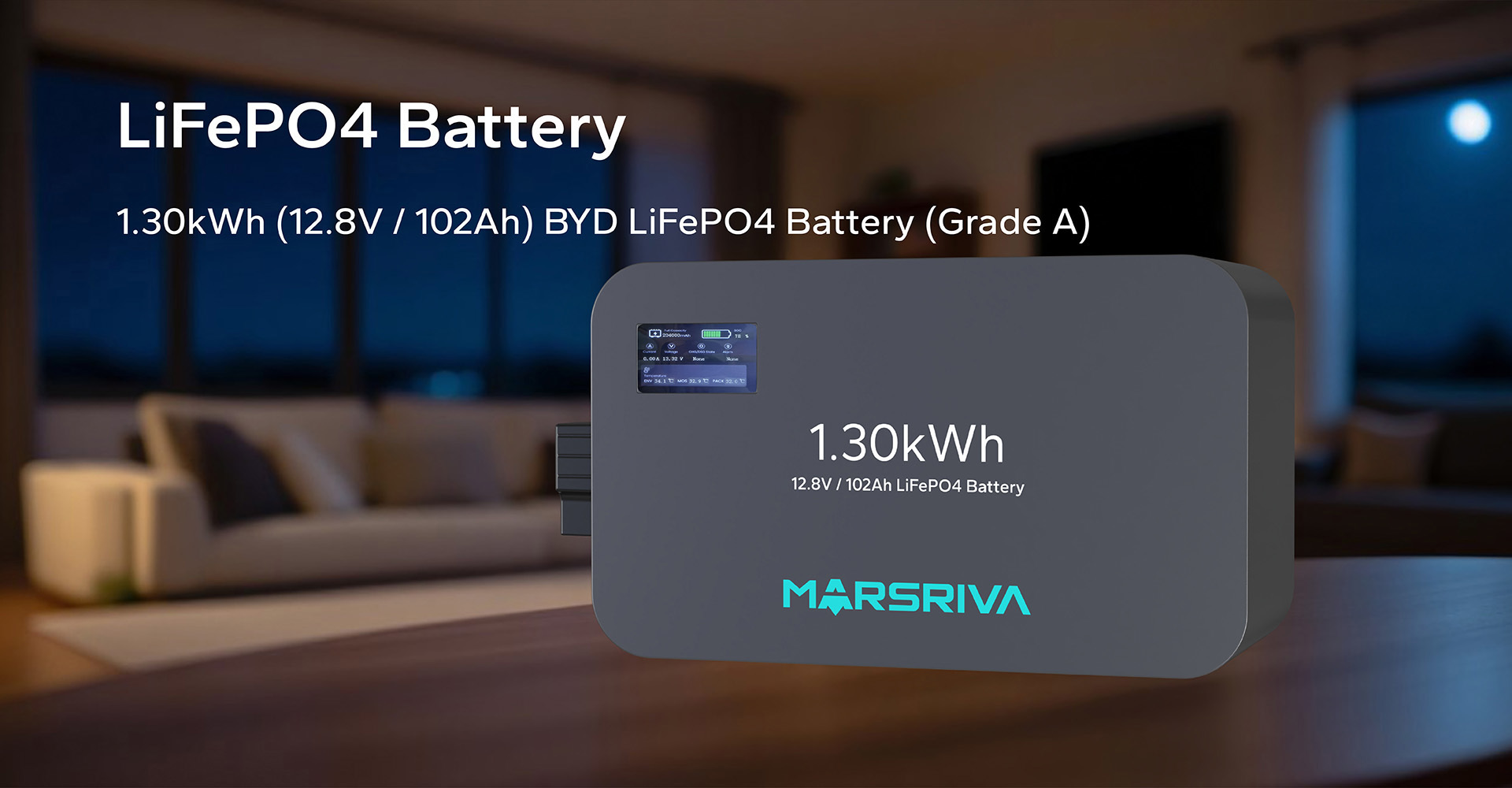

LiFePO4 Battery (Grade A)
1.30kWh (12.8V / 102Ah)
-
-
• Iron phosphate-lithium power battery
• High energy density, high capacity, longer back up time
• Support using under wide temperature range, 6000+ cycle life
• Built-in BMS
• Support connected in parallel mode for expansion
• Long warranty period
• Wall mount for simple installation
• Constructed with SPCC high-quality cold-rolled steel for robust support
• Built-in aerosol fire extinguisher
隐藏域元素占位
- Overview
- Specifications
- Downloads
- Support
- 概要
Expand All
| Model | MR-LFP12-100-WMD | |||
| Battery Type | LiFePO4 Battery (Grade A) | |||
| Nominal Voltage | 12.8V | |||
| Capacity | 102Ah | |||
| Storage Capacity | 1.30kWh | |||
| Battery Internal Resistance | ≤13.9mΩ | |||
| Cycle Life | ≥6000 @25°C, to 70% EOL | |||
| Design Life | ≥10 years | |||
| Max. Charging Current | 100A | |||
| Max. Discharging Current | 100A | |||
| Charging Voltage | 14.4VDC | |||
| Discharging Cut-off Voltage | 10.8VDC | |||
| Communication | Bluetooth, RS485 | |||
| Number of Parallel Connections | Up to 15 units | |||
| Terminal Size | M6 | |||
| Installation | Wall-mount | |||
| Charging Temperature | 0℃ to 55℃ | |||
| Discharging Temperature | -20℃ to 55℃ | |||
| Storage Temperature | -30℃ to 35℃ | |||
| Humidity | 5% – 95% | |||
| Dimension (L*W*H) | 347.5 × 170.5 × 190mm | |||
| Weight | 11.3kg | |||
All above information shall be changed without prior notice, MARSRIVA reserves the right to explain and update the latest information.
