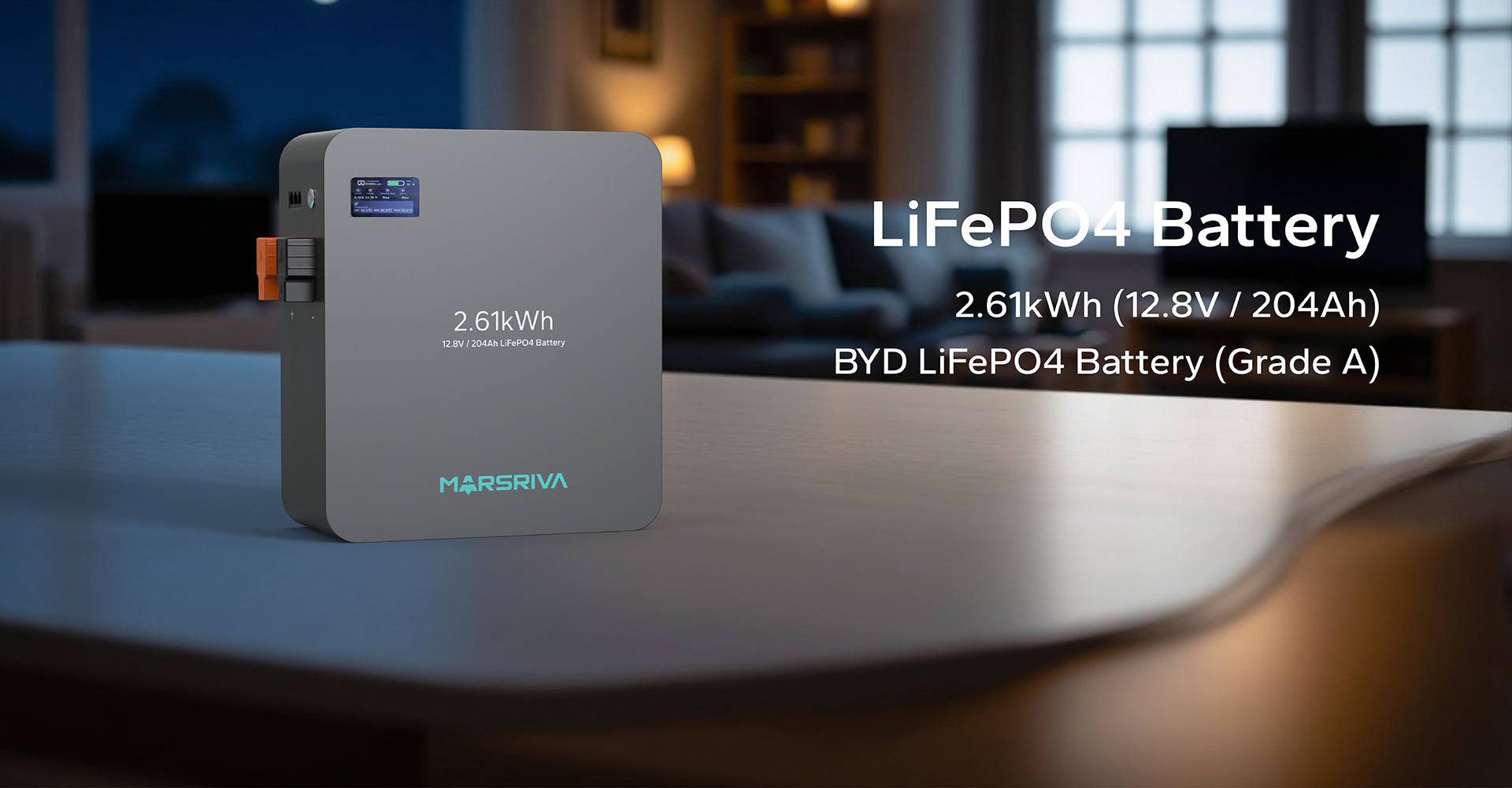

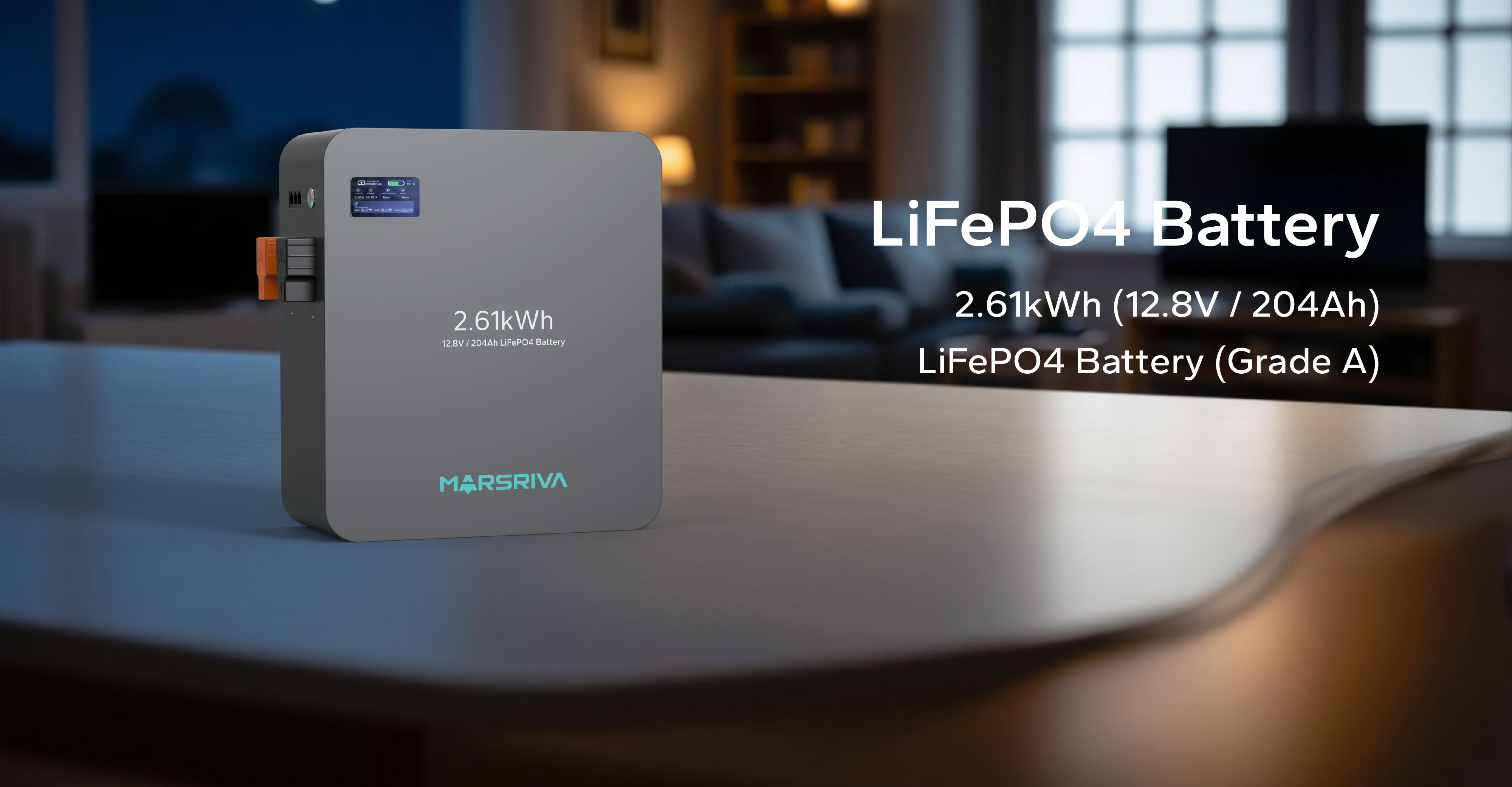

MR-LFP12-200-WMD
BYD LiFePO4 Battery (Grade A)
2.61kWh (12.8V / 204Ah)
-
LiFePO4 Battery
2.61kWh (12.8V / 204Ah) BYD LiFePO4 Battery (Grade A)
-
● Iron phosphate-lithium power battery
● High energy density, high capacity, longer discharge time
● Support using under wide temperature range, 6000 cycle life
● Built-in BMS
● Support connected in parallel mode for expansion
● Long warranty period

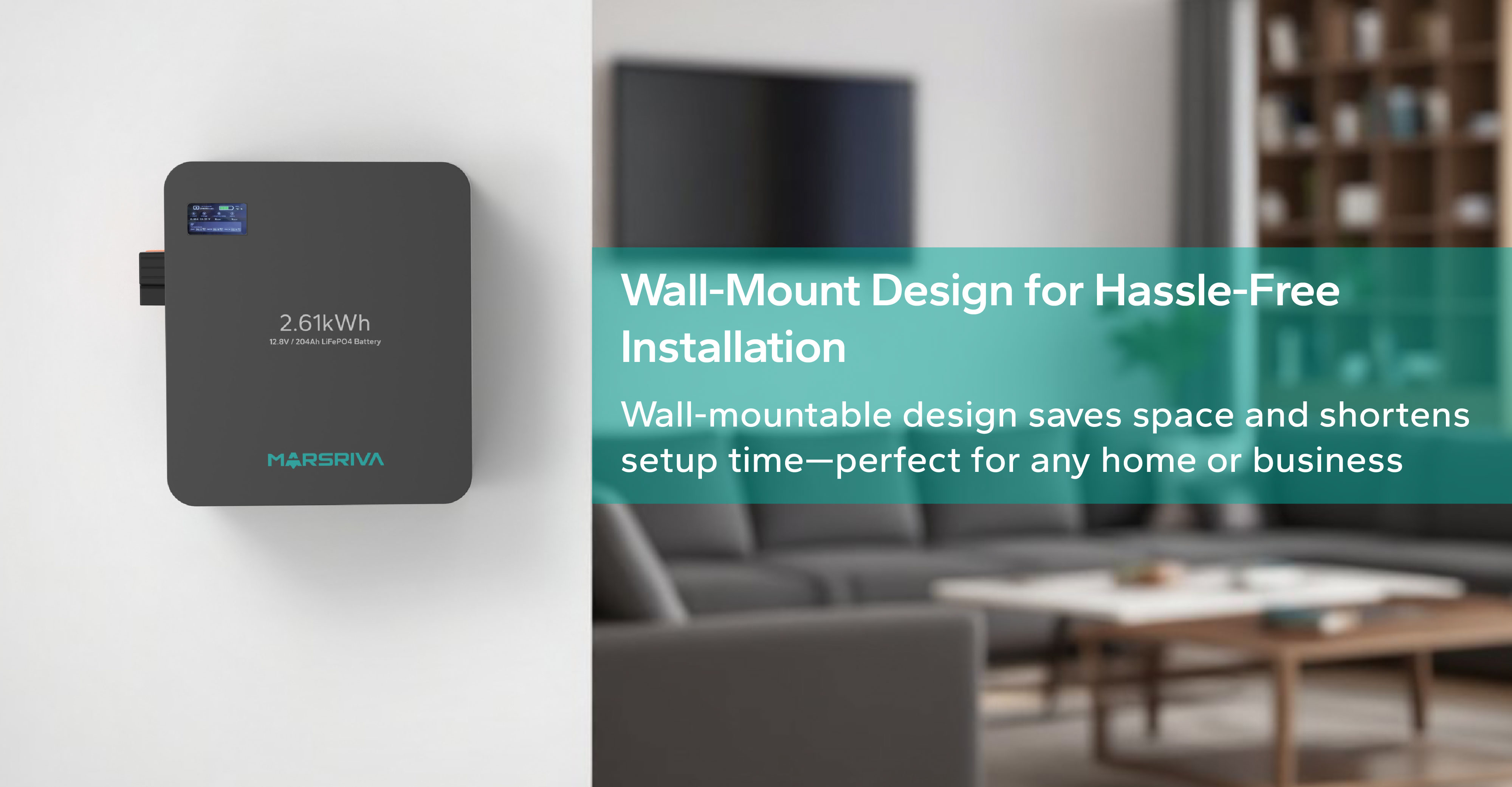

● Wall mount for simple installation
● Constructed with SPCC high-quality cold-rolled steel for robust support
隐藏域元素占位
- Overview
- Specifications
- Downloads
- Support
- 概要
-
LiFePO4 Battery
2.61kWh (12.8V / 204Ah) BYD LiFePO4 Battery (Grade A)
Expand All
Model | MR-LFP12-200-WMD | |||
Battery Type | BYD LiFePO4 Battery (Grade A) | |||
Nominal Voltage | 12.8V | |||
Capacity | 204Ah | |||
Storage Capacity | 2.61kWh | |||
Battery Internal Resistance | ≤10mΩ | |||
Cycle Life | ≥6000 @25°C, 70% EOL | |||
Design Life | ≥10 years | |||
Charging Current | 50A,100A (Max.) | |||
Discharging Current | 100A (Max.) | |||
Full Charge Voltage | 14.4VDC | |||
Discharge Cut-Off Voltage | 10.8VDC | |||
Communication Interface | Bluetooth, RS485(BMS), RS485(Parallel) | |||
Number of Parallel Connections | Up to 15 units | |||
Terminal Size | M6 | |||
Installation | Wall-mounted | |||
Charging Temperature | 0℃ to 55℃ | |||
Discharge Temperature | -20℃ to 60℃ | |||
Storage Temperature | -30℃ to 35℃ | |||
Humidity | 5% – 95% | |||
Dimension (L*W*H) | 315 × 350 × 155mm | |||
Weight | Net Weight: 21.65kg (Gross Weight: 40.5kg) |
All above information shall be changed without prior notice, MARSRIVA reserves the right to explain and update the latest information.
