HES20 / HES40 / HES60

Whenever you need power

Output: 2200W / 4400W / 6600W

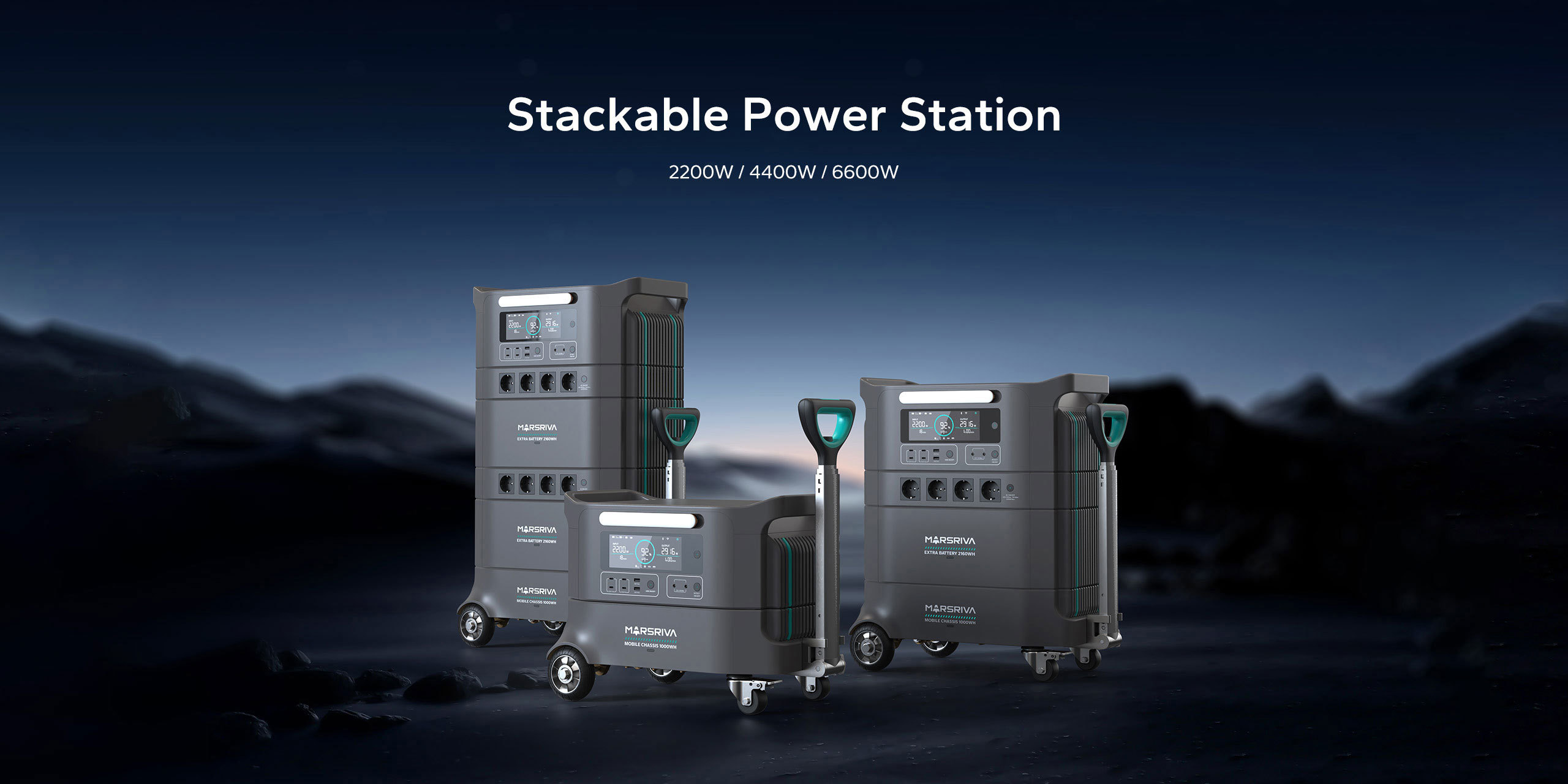

Stackable Power Station

Output: 2200W / 4400W / 6600W
● With patented TopologyIQ™ Modular Technology, battery can expand from 2kWh to 100kWh.

● AC output expandable from 2.2kW to 11kW, suitable for 99% of electrical appliances.

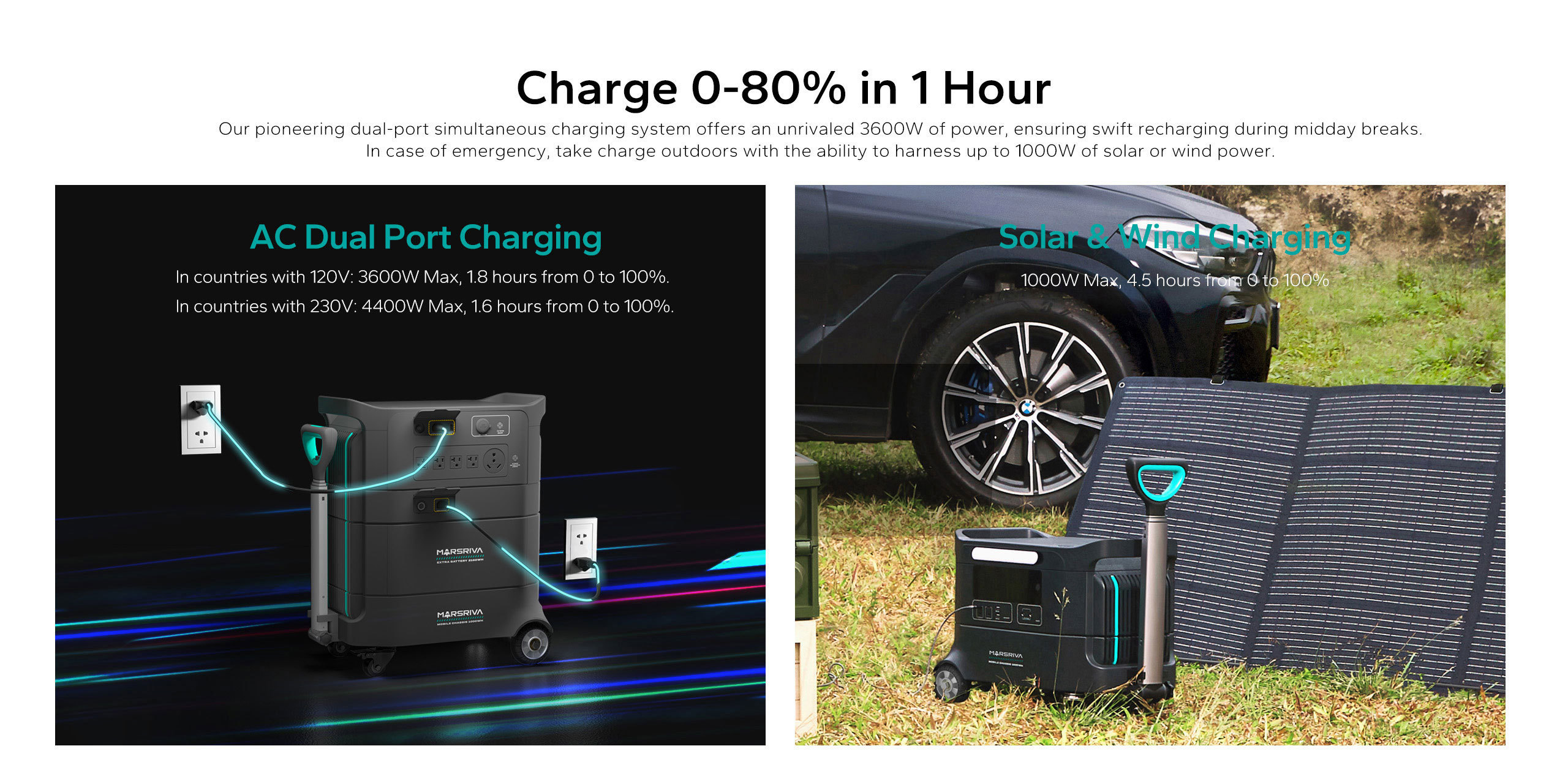

● With PowerRaise™ Fast Charging technology, battery can be charged from 0 to 80% within 1 hour, to 100% within 1.5 hours.

● Battery 3500+ charge cycles.

● Designed in aluminum alloy frame, bearing load up to 80kg.

● Engineered with automotive-grade LFP Battery Cells for rigorous commercial demands.

● Multiple charging methods available.

Leave a message

隐藏域元素占位

Overview
Specifications
Downloads
Support
概要

Stackable Power Station

Output: 2200W / 4400W / 6600W

Expand All

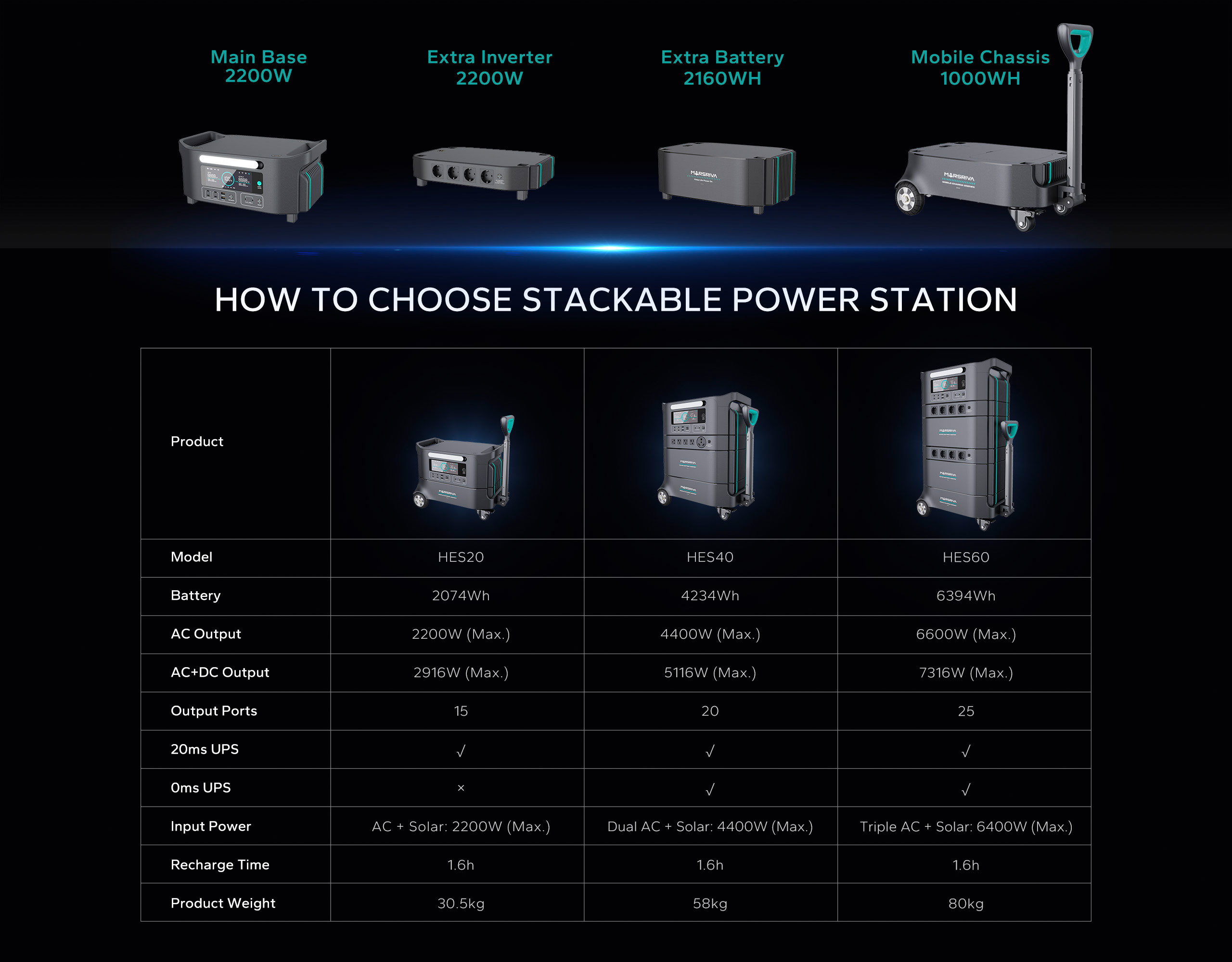

Stackable Power Sation

Main Base 2200W

General Info:
Net Weight: 16.7kg
Gross Weight: 19.7kg
Product Dimension: 480*306*225mm
Package Dimension: 581*410*275mm
Battery Capacity: 1037Wh, 48V

Battery Info:
Cell Chemistry: LFP
Cycle Life: 3000 cycles to 80% capacity

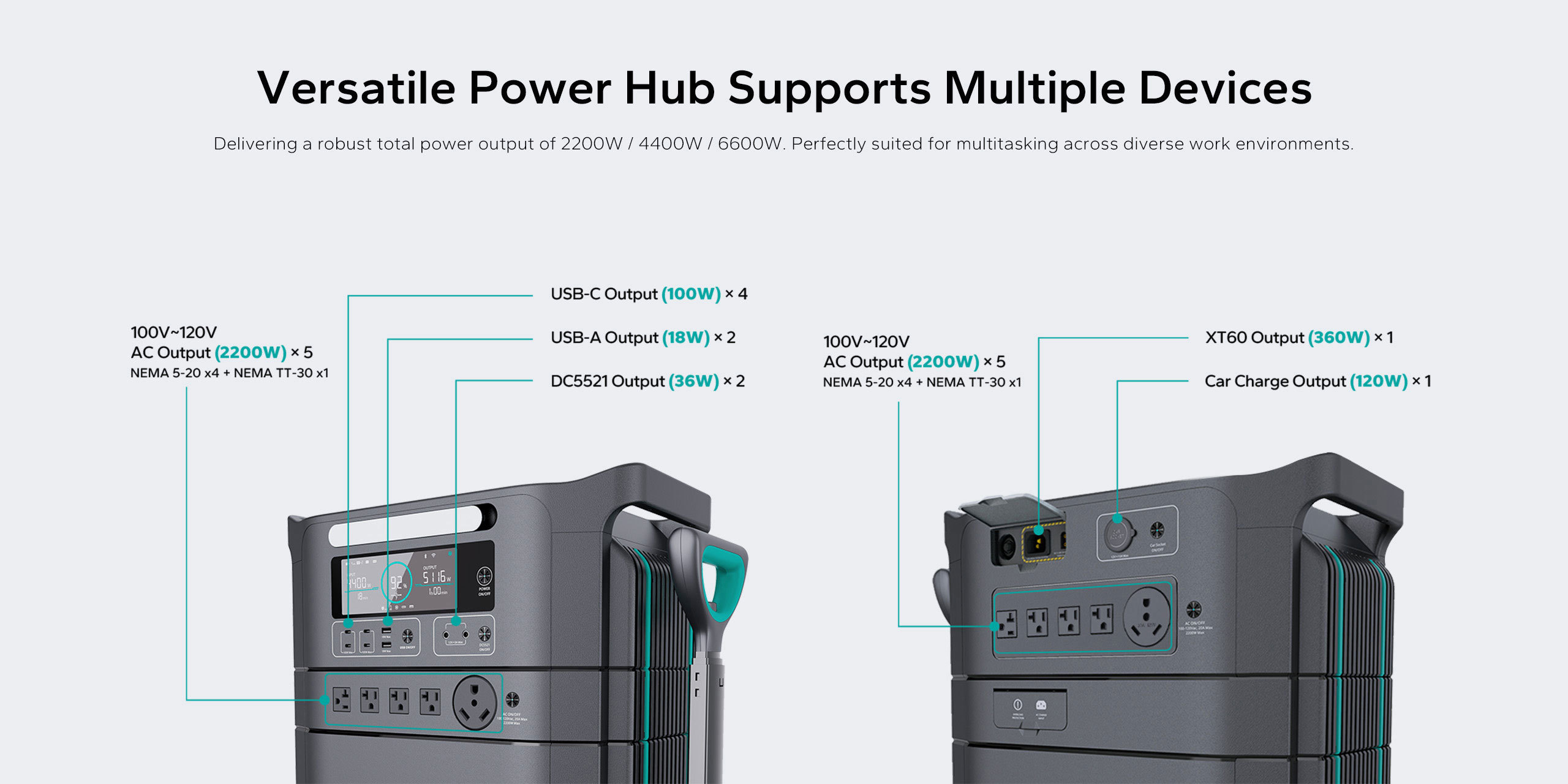

Output Ports:

AC (×4): Pure sine wave, 2200W total, 220-240V (50Hz/60Hz), 10A (Max.)
USB-A Fast Charging (×2): 5V/2.4A, 9V/2A, 12V/1.5A, 18W (Max.), total 36W
USB-C (×4): 5V/3A,9V/3A,12V/3A,15V/3A,20V/5A, 100W (Max.), total 200W
Car Charger (x1): 12V / 10A, 120W (Max.)
DC5521 Output (×2): 12V / 3A, total 36W (Max.)
XT60 Output (x1): 12V / 30A, total 360W (Max.)

Input Ports:

AC Charging(x1): 220V-240V (50Hz / 60Hz), 10A (Max.), 2200W (Max.)
XT60 Charging (Solar): 11V-60V, 20A (Max.), 1000W (Max.)

Extra Inverter 2200W

General Info:

Net Weight: 5.3kg
Gross Weight: 6.9kg
Product Dimension: 465*300*103mm
Package Dimension: 581*410*192mm

Output Ports:

AC(×4): Pure sine wave, 2200W total, 220-240V (50Hz/60Hz), 10A (Max.)

Input Ports:

AC Charging(x1): 220-240V (50Hz/60Hz), 10A Max, 2200W (Max.)

Extra Battery 2160Wh

General Info:

Net Weight: 22.4kg
Gross Weight: 24.8kg
Product Dimension: 465*300*186mm
Package Dimension: 581*410*275mm
Battery Capacity: 2160Wh, 48V

Battery Info:

Cell Chemistry: LFP
Cycle Life: 3000 cycles to 80% capacity

Mobile Chassis 1037Wh

General Info:

Net Weight: 14.3kg
Gross Weight: 16.8kg
Product Dimension: 483*343*180mm
Package Dimension: 581*410*275mm
Battery Capacity: 1037Wh, 48V

Battery Info:

Cell Chemistry: LFP
Cycle Life: 3000 cycles to 80% capacity

Specifications are subject to change without notice, and all product drawings are for reference only.
Consult MARSRIVA for the latest design and specifications.
