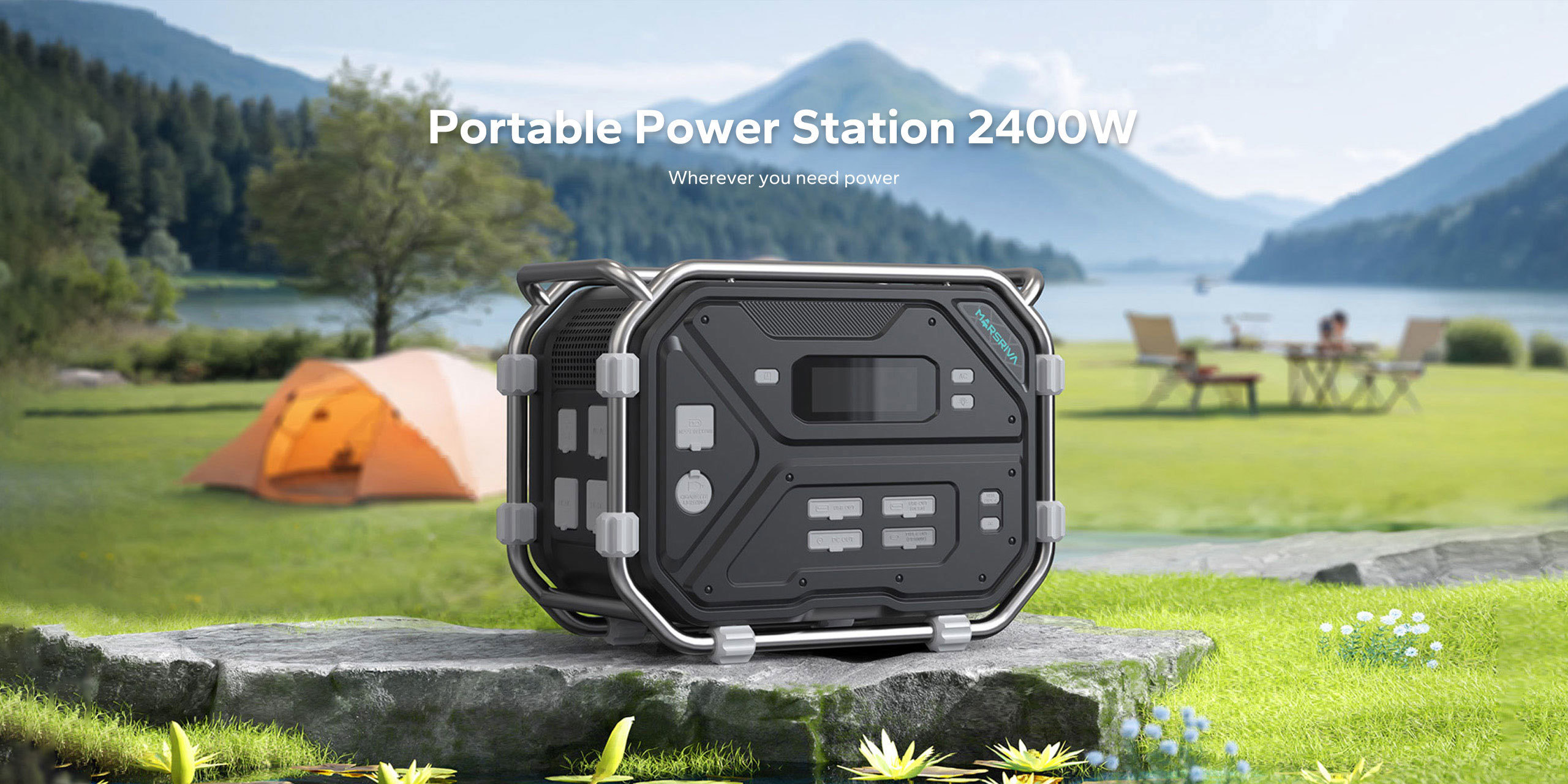

MP24 (2400W)

Wherever you need power

Capacity: 2621.44Wh (51.2V / 51200mAh)

• 2400W rated output with 2621Wh battery capacity
• High-quality LiFePO4 batteries provide better performance and safety
• 4000+ battery cycle life brings longer product service life
• Various output ports include 140W PD Type-C
• High AC charging power 1500W, charge your unit quickly
• DC input range 24-145V can support solar panel charging up to 1500W
• UPS function, standard switching time within 10ms
• Suitable for wide ambient temperature
• Grid-connected function reduces consumption from the grid and saves electricity bills

Leave a message

隐藏域元素占位

Overview
Specifications
Downloads
Support
概要

Expand All

Portable Power Station - MP24 (120V)

GENERAL INFO
Model		MP24
Rated Power		2400W (Max.)
Peak Power		4000W
Battery Capacity		2621Wh (51.2V / 51200mAh)
Battery Type		BYD LiFePO4 Battery (4000+cycles to 80% EOL)
Grid Connection Power		800W (Max.) (Customizable)
Dimensions (LWH)		512 x 259 x 377mm
Weight		25.6kg
Output
Type-C1		5V / 3.0A, 9V / 3.0A, 12V / 3.0A, 15V / 2.0A, 20V / 2.0A, 40W (Max.)
Type-C2		5V / 3.0A, 9V / 3.0A, 12V / 3.0A, 15V / 3.0A,, 20V / 5.0A, 28V / 5.0A, 140W (Max.)
USB-A * 4		5V / 3.0A, 9V / 2.0A, 12V / 1.5A, 18W (Max.)
All USB Output		252W (Max.)
DC5521		12V / 5.0A, 60W (Max.)
DC5525		24V / 4.5A, 108A (Max.)
Cigarette Lighter		12V / 10.0A, 120W (Max.)
AC Output * 4		120VAC, 60Hz, 2000W (Max.), Pure Sine Wave
AC + DC Output		2400W (Max.)
Lighting		3W
Input
AC Input		100VAC – 130VAC, 50Hz/60Hz, 1200W (Max.)
XT60 Input		25VDC – 145VDC, 1500W (Max.) (Supports Solar Panel)
ENVIRONMENTAL OPERATING TEMPERATURE
Charge Temperature		Discharge: -20°C to 45°C; Charge: 0°C to 45°C
Storage Temperature		-20°C to 45°C

Specifications are subject to change without notice, and all product drawings are for reference only. Consult MARSRIVA for the latest design and specifications.

Portable Power Station - MP24 (230V)

GENERAL INFO
Model		MP24
Rated Power		2400W (Max.)
Peak Power		4800W
Battery Capacity		2621.44Wh (51.2V / 51200mAh)
Battery Type		BYD LiFePO4 Battery (4000+cycles to 80% EOL)
Grid Connection Power		800W (Max.) (Customizable)
Dimensions (LWH)		512 x 259 x 377mm
Weight		25.6kg
Output
Type-C1		5V / 3.0A, 9V / 3.0A, 12V / 3.0A, 15V / 2.0A, 20V / 2.0A, 40W (Max.)
Type-C2		5V / 3.0A, 9V / 3.0A, 12V / 3.0A, 15V / 3.0A,, 20V / 5.0A, 28V / 5.0A, 140W (Max.)
USB-A (QC) * 4		5V / 3.0A, 9V / 2.0A, 12V / 1.5A, 18W (Max.)
All USB Output		252W (Max.)
DC5521		12V / 5.0A, 60W (Max.)
DC5525		24V / 4.5A, 108A (Max.)
Cigarette Lighter		12V / 10.0A, 120W (Max.)
AC Output * 4		230VAC, 50Hz, 2400W (Max.), Pure Sine Wave
Lighting		3W
Input
AC Input		200VAC – 240VAC, 50/60Hz, 1500W (Max.)
XT60 Input		25VDC – 145VDC, 1500W (Max.) (Supports Solar Panel)
ENVIRONMENTAL OPERATING TEMPERATURE
Charge Temperature		Discharge: -20°C to 45°C; Charge: 0°C to 45°C
Storage Temperature		-20°C to 45°C

Specifications are subject to change without notice, and all product drawings are for reference only. Consult MARSRIVA for the latest design and specifications.

Downloads

MP24(120V) User Manual

8.8MB

MP24(230V) User Manual

8.8MB

All Power Stations Catalogue

1.1MB

Support

Please contact our Tech Support department with installation, troubleshooting, or general product questions.

Hours of operation: Monday – Friday 9 : 00am – 9 : 00pm UTC+8

Our Technical Support team will be happy help you with technical questions during business hours.

Contact Tech Support: Submit Ticket Now
