MP6S (600W)

Whenever you need power

Capacity: 268.8Wh (22.4V / 12000mAh)

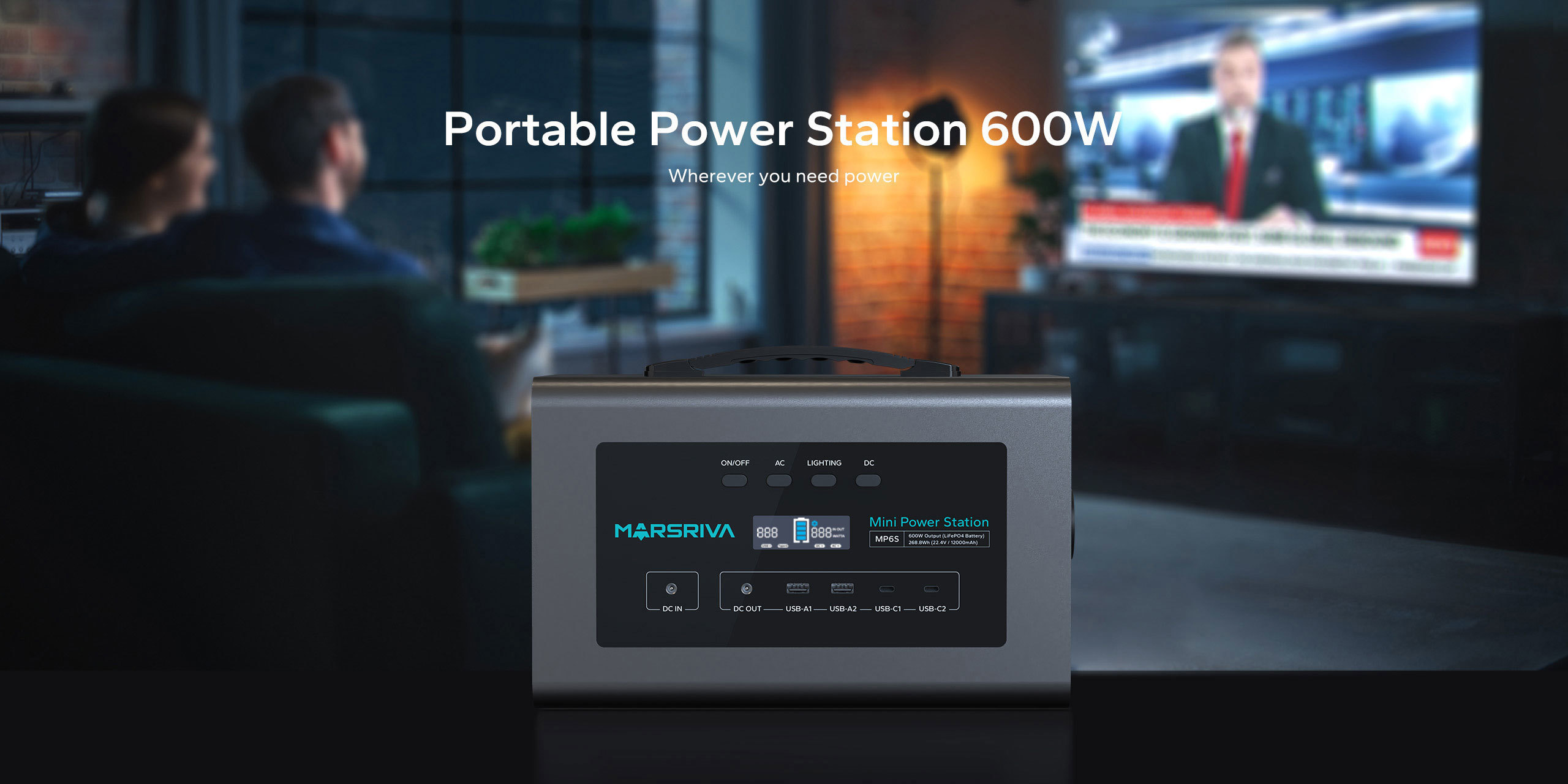

Mini Power Station 600W

Whenever you need power
● Iron phosphate-lithium power battery, more security

● High battery capacity

● Excellent BMS protection

● Support using under wide temperature range, 6000 cycle life

● Compact and portable

● Multiple output ports

Leave a message

隐藏域元素占位

Overview
Specifications
Downloads
Support
概要

Mini Power Station 600W

Whenever you need power

Expand All

Mini Power Sation - MP6S

GENERAL INFO
Model		MP6S
Rated Power		600W (Max.)
Capacity		268.8Wh (22.4V / 12000mAh)
Battery Type		Lithium-iron Battery (LiFePO4)
Power Adapter Included		90W
Dimensions (LWH)		325 x 185 x 214.5mm
Weight		6.5kg
Output

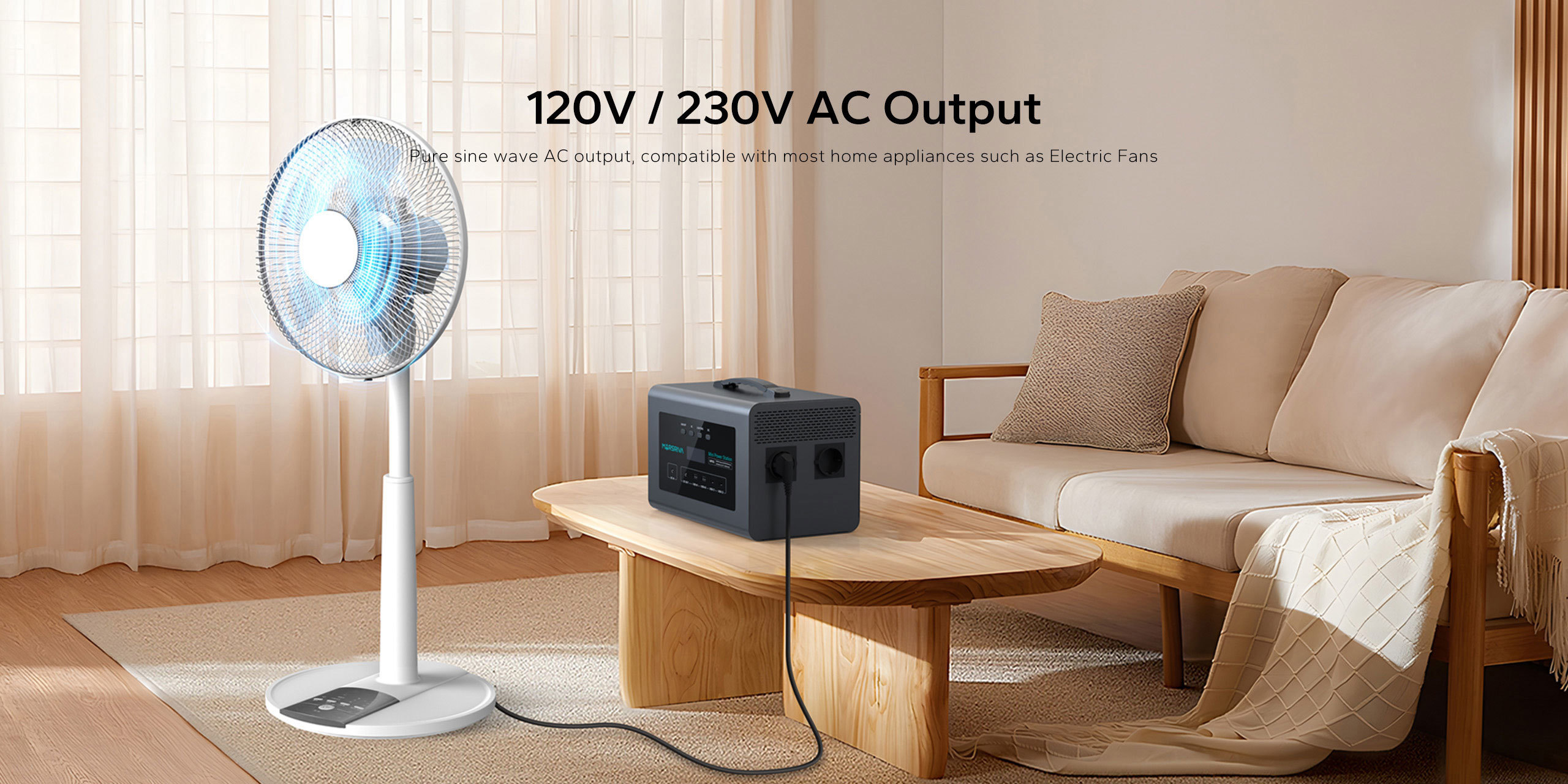

AC Output		110VAC, 60Hz or 220VAC, 50Hz, 600W (Max.) Pure Sine Wave
DC 5521 Output		13V / 5.0A, 65W (Max.)
USB-A1 Output		5V / 3.0A, 9V / 2.0A, 12V / 1.5A, 18W (Max.)
USB-A2 Output		5V / 3.0A, 15W (Max.)
USB-C1 Output		5V / 3.0A, 15W (Max.)
USB-C2 Output		5V / 3.0A, 9V / 2.0A, 12V / 2.0A, 15V / 2.0A, 30W (Max.)
USB-A2 + USB-C1 Output		15W (Max.)
USB-(A1 + A2 + C1 + C2) Output		63W (Max.)
Lighting Output		2W
Input

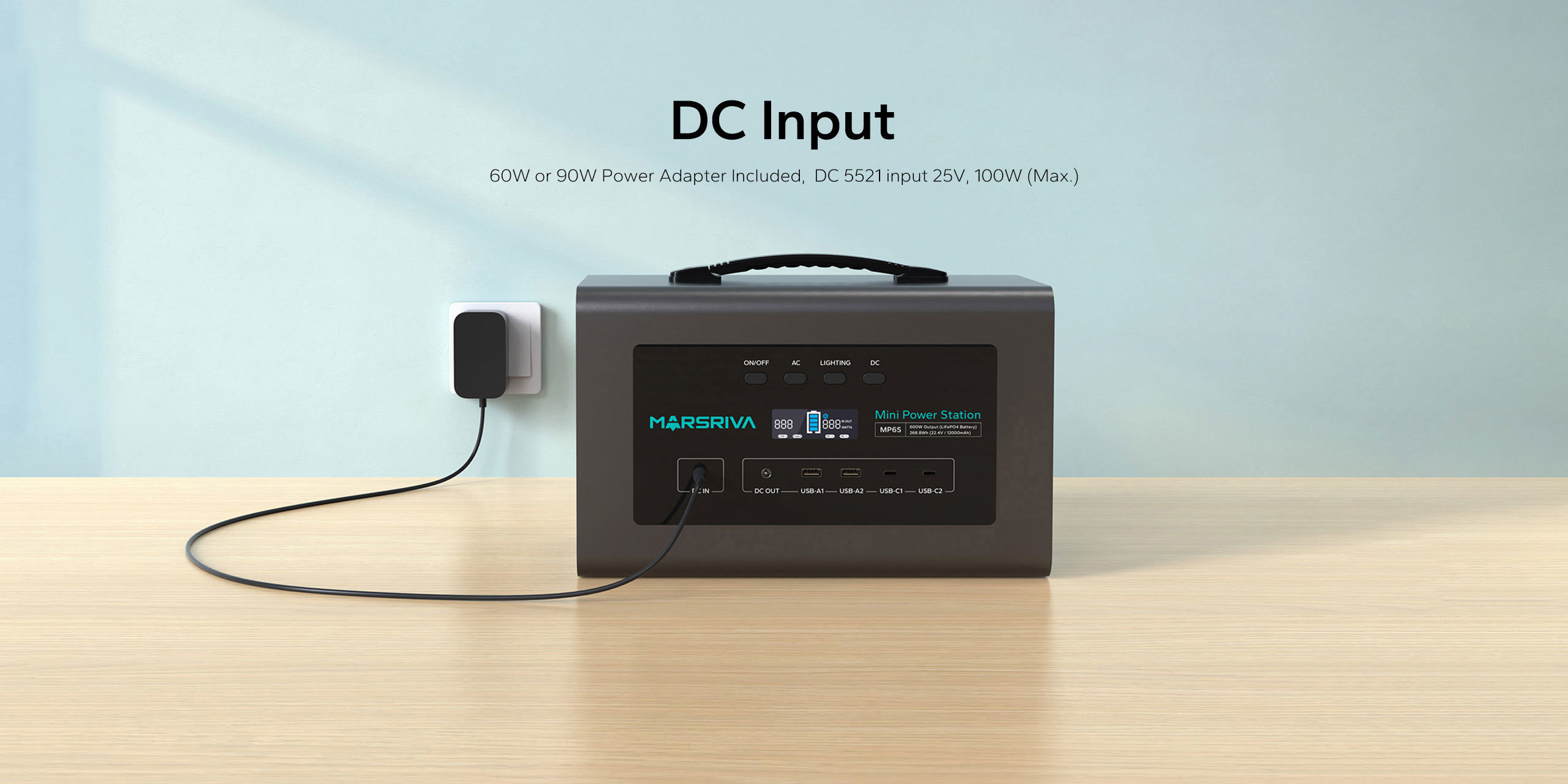

DC 5521 Input		25VDC, 100W (Max.)
ENVIRONMENTAL OPERATING TEMPERATURE
Charge Temperature		0°C to 45°C
Discharge Temperature		-10°C to 45°C

Specifications are subject to change without notice, and all product drawings are for reference only. Consult MARSRIVA for the latest design and specifications.
