MR-SPH4200 TWIN

Single Phase - IP20 - High Frequency

RATED POWER: 4200VA / 4200W

隐藏域元素占位

Expand All

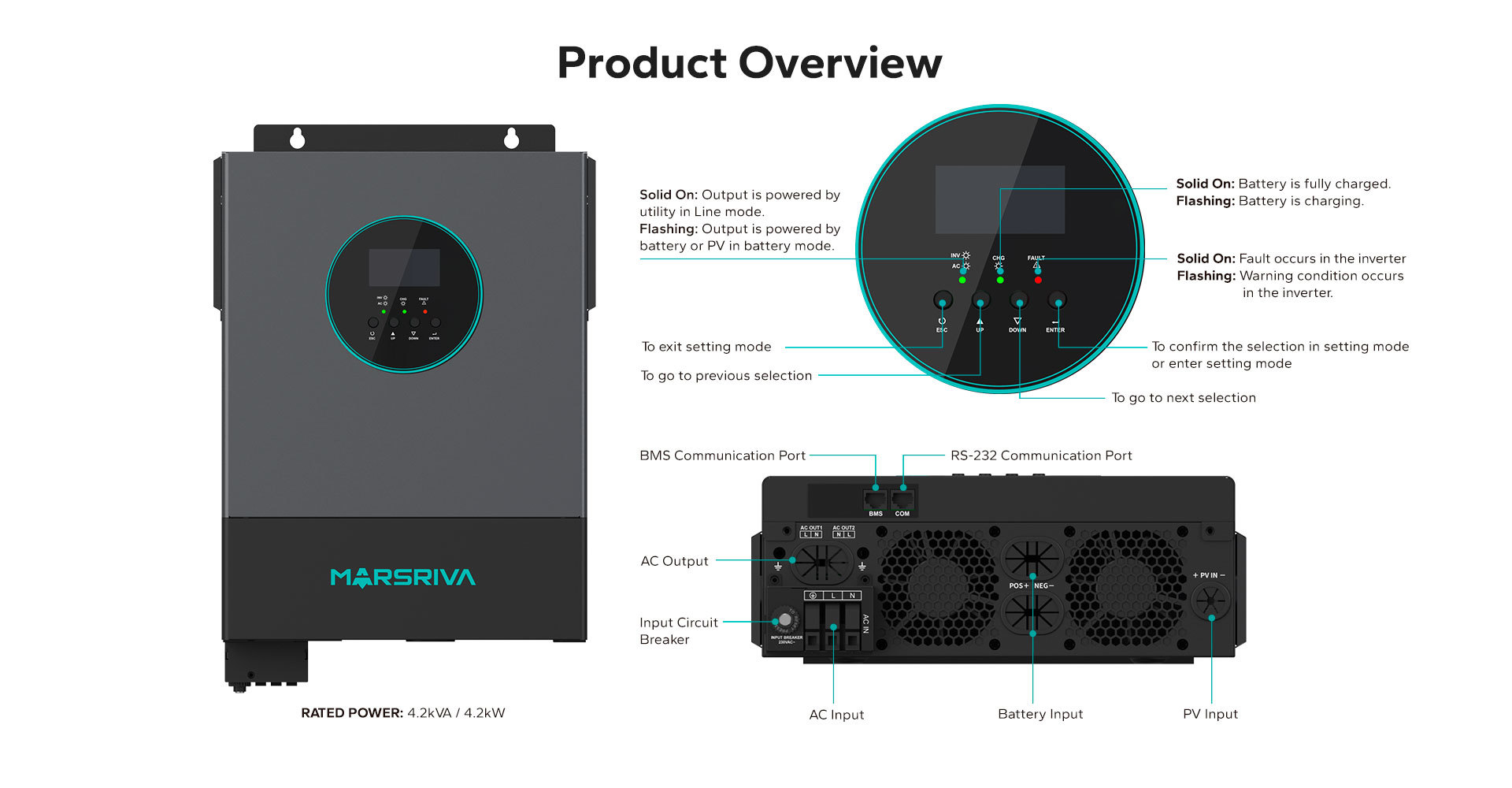

Hybrid Solar Inverter SPH4200 TWIN

Model		MR-SPH4200 TWIN
RATED POWER		4.2kVA / 4.2kW
Output
AC Voltage Regulation (Batt. Mode)		230VAC ± 5%
Output Power		4200W with PV & battery, 4000W with battery only
Surge Power		8400VA
Efficiency (Peak)		93%
Transfer Time		10ms (For PC); 20ms (For Home Appliances)
Waveform		Pure sine wave
Input
Voltage		230VAC
Selectable Voltage Range		170 – 280VAC (For PC); 90 – 280VAC (For Home Appliances)
Frequency Range		50Hz / 60Hz (Auto sensing)
Battery
Nominal Battery Voltage		24VDC
Floating Charging Voltage		27VDC
Overcharge Protection		32VDC
AC CHARGING & MPPT SOLAR CHARGING
Solar Charger Type		MPPT
Maximum PV Array Open Circuit Voltage		500VDC
Maximum PV Array Power		5000W
Maximum PV Input Current		18A
MPP Range @ Operating Voltage		30 – 450 VDC (Min. 60 VDC with out battery connected)
Maximum Solar Charge Current		120A
Maximum AC Charge Current		100A
Maximum Charge Current		120A
PHYSICAL & COMMUNICATION
Dimension, D x W x H (mm)		115 × 300 × 435
Net Weight (kg)		9.0
Communication Interface		RS232 / BMS / WiFi
ENVIRONMENT
Humidity		5% to 95% Relative Humidity (Non-condensing)
Operating Temperature		-10°C to 50°C
Storage Temperature		-15°C to 60°C
