MP36 (3600W)

Whenever you need power

Capacity: 3932.16Wh (51.2V/ 76800mAh)

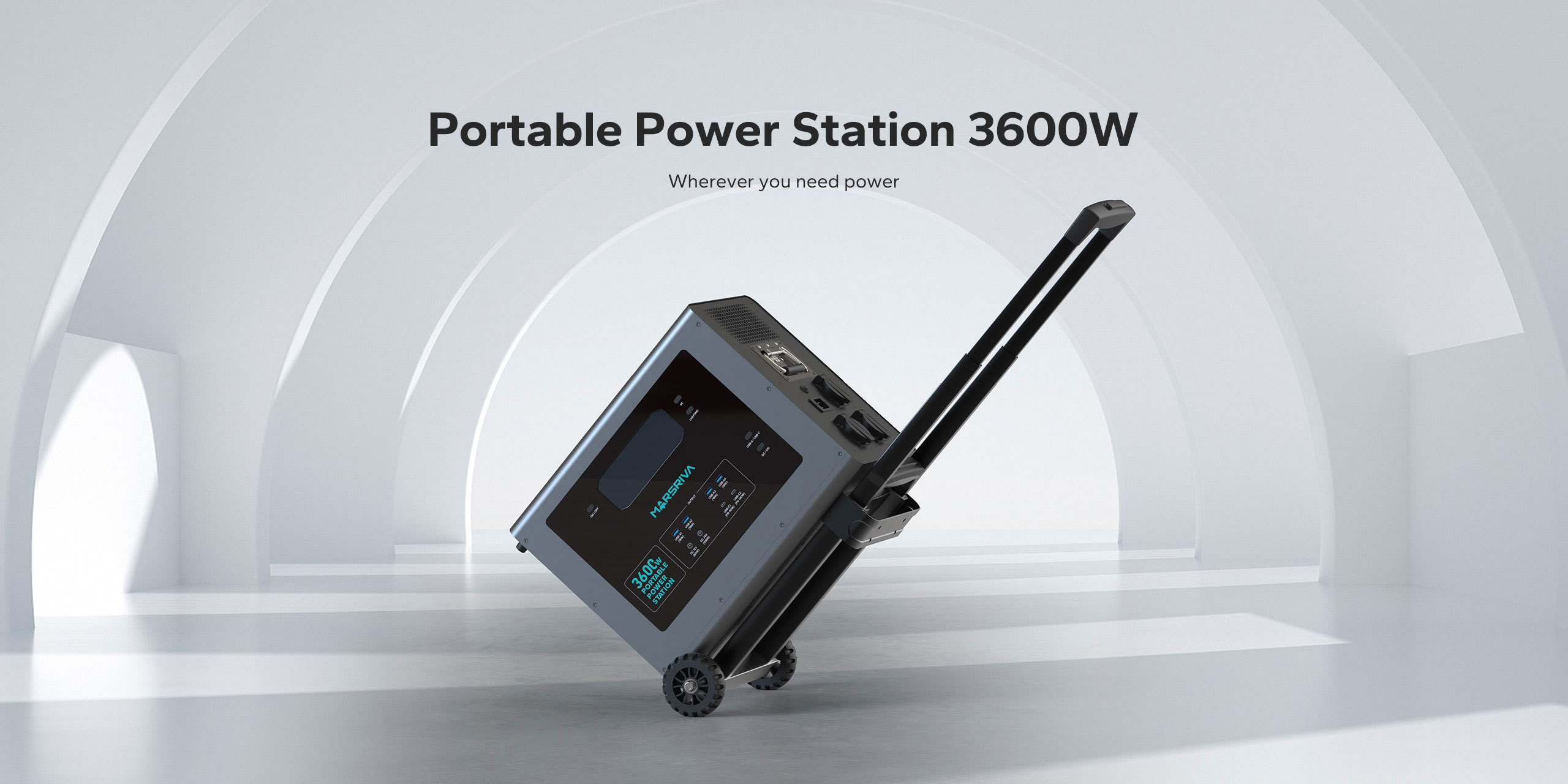

Mini Power Station 3600W

Whenever you need power

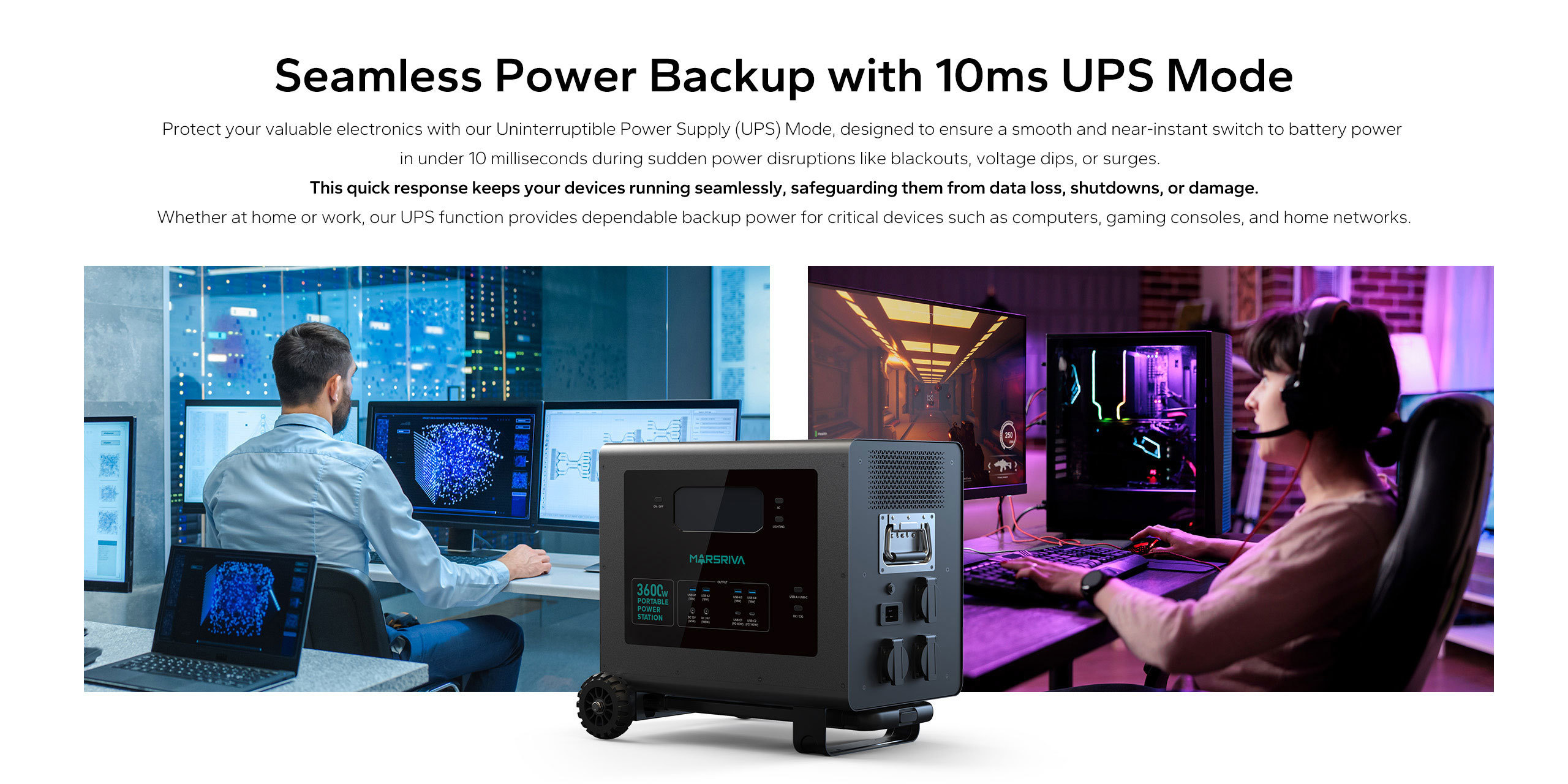

● Fast 10ms Switch: Switches automatically to battery power within 10ms when the power goes out, ensuring uninterrupted operation.
● Versatile Protection: Ideal for protecting a variety of devices like desktop computers, routers, gaming consoles, and other electronics.
● With the UPS Mode: you can confidently power through any outage, knowing your essential devices will remain protected and operational.
● 200V-240V, 1500W AC fast charge
● Multiple charging methods available
● Iron phosphate-lithium power battery, more security
● High battery capacity
● Excellent BMS protection
● Support using under wide temperature range, 6000 cycle life
● Support grid connection
● Compact and portable
● Multiple output ports (including fast charge ports)

Leave a message

隐藏域元素占位

Overview
Specifications
Downloads
Support
概要

Mini Power Station 3600W

Whenever you need power

Expand All

Portable Power Station - MP36 (120V)

GENERAL INFO
Model		MP36
Rated Power		3600W (Max.)
Peak Power		7200W
Battery Capacity		3932.1Wh (51.2V/ 76800mAh)
Battery Type		BYD LiFePO4 Battery (4000+cycles to 80% EOL)
Dimensions (LWH)		502 x 255 x 378mm
Weight		39.7kg
Output
USB-C1 (PD)		5V / 3.0A, 9V / 3.0A, 12V / 3.0A, 15V / 3.0A,, 20V / 5.0A, 28V / 5.0A, 140W (Max.)
USB-C2 (PD)		5V / 3.0A, 9V / 3.0A, 12V / 3.0A, 15V / 2.0A, 20V / 2.0A, 40W (Max.)
USB-A (QC) * 4		5V / 3.0A, 9V / 2.0A, 12V / 1.5A, 18W (Max.)
All USB Output		252W (Max.)
DC5521		12V / 5.0A, 60W (Max.)
DC5525		24V / 4.5A, 108A (Max.)
Cigarette Lighter		12V / 10.0A, 120W (Max.)
DC5521 + Cigarette Lighter		120W (Max.)
AC Output * 3		120V, 60Hz, 3600W (Max.), Pure Sine Wave
Lighting		3W
On-Grid Output		800W (Adjustable)
Input
AC Input		120V, 50 / 60Hz, 1500W (Max.)
XT60 Input		25VDC – 145VDC, 1500W (Max.) (Supports Solar Panel)
ENVIRONMENTAL OPERATING TEMPERATURE
Charge Temperature		Discharge: -20°C to 45°C; Charge: 0°C to 45°C
Discharge Temperature		-20°C to 45°C

Specifications are subject to change without notice, and all product drawings are for reference only. Consult MARSRIVA for the latest design and specifications.

Portable Power Station - MP36 (220V)

GENERAL INFO
Model		MP36
Rated Power		3600W (Max.)
Peak Power		7200W
Battery Capacity		3932.1Wh (51.2V/ 76800mAh)
Battery Type		BYD LiFePO4 Battery (4000+cycles to 80% EOL)
Dimensions (LWH)		502 x 255 x 378mm
Weight		39.7kg
Output
USB-C1 (PD)		5V / 3.0A, 9V / 3.0A, 12V / 3.0A, 15V / 3.0A,, 20V / 5.0A, 28V / 5.0A, 140W (Max.)
USB-C2 (PD)		5V / 3.0A, 9V / 3.0A, 12V / 3.0A, 15V / 2.0A, 20V / 2.0A, 40W (Max.)
USB-A (QC) * 4		5V / 3.0A, 9V / 2.0A, 12V / 1.5A, 18W (Max.)
All USB Output		252W (Max.)
DC5521		12V / 5.0A, 60W (Max.)
DC5525		24V / 4.5A, 108A (Max.)
Cigarette Lighter		12V / 10.0A, 120W (Max.)
DC5521 + Cigarette Lighter		120W (Max.)
AC Output * 3		220V, 50Hz, 3600W (Max.), Pure Sine Wave
Lighting		3W
On-Grid Output		800W (Adjustable)
Input
AC Input		220V, 50 / 60Hz, 1500W (Max.)
XT60 Input		25VDC – 145VDC, 1500W (Max.) (Supports Solar Panel)
ENVIRONMENTAL OPERATING TEMPERATURE
Charge Temperature		Discharge: -20°C to 45°C; Charge: 0°C to 45°C
Discharge Temperature		-20°C to 45°C

Specifications are subject to change without notice, and all product drawings are for reference only. Consult MARSRIVA for the latest design and specifications.

Downloads

MP24 User Manual

1.9MB

Support

Please contact our Tech Support department with installation, troubleshooting, or general product questions.

Hours of operation: Monday – Friday 9 : 00am – 9 : 00pm UTC+8

Our Technical Support team will be happy help you with technical questions during business hours.

Contact Tech Support: Submit Ticket Now

Submit a Support Ticket
