MR-SPH6200 TWIN

Single Phase - High Frequency

RATED POWER: 6200VA / 6200W

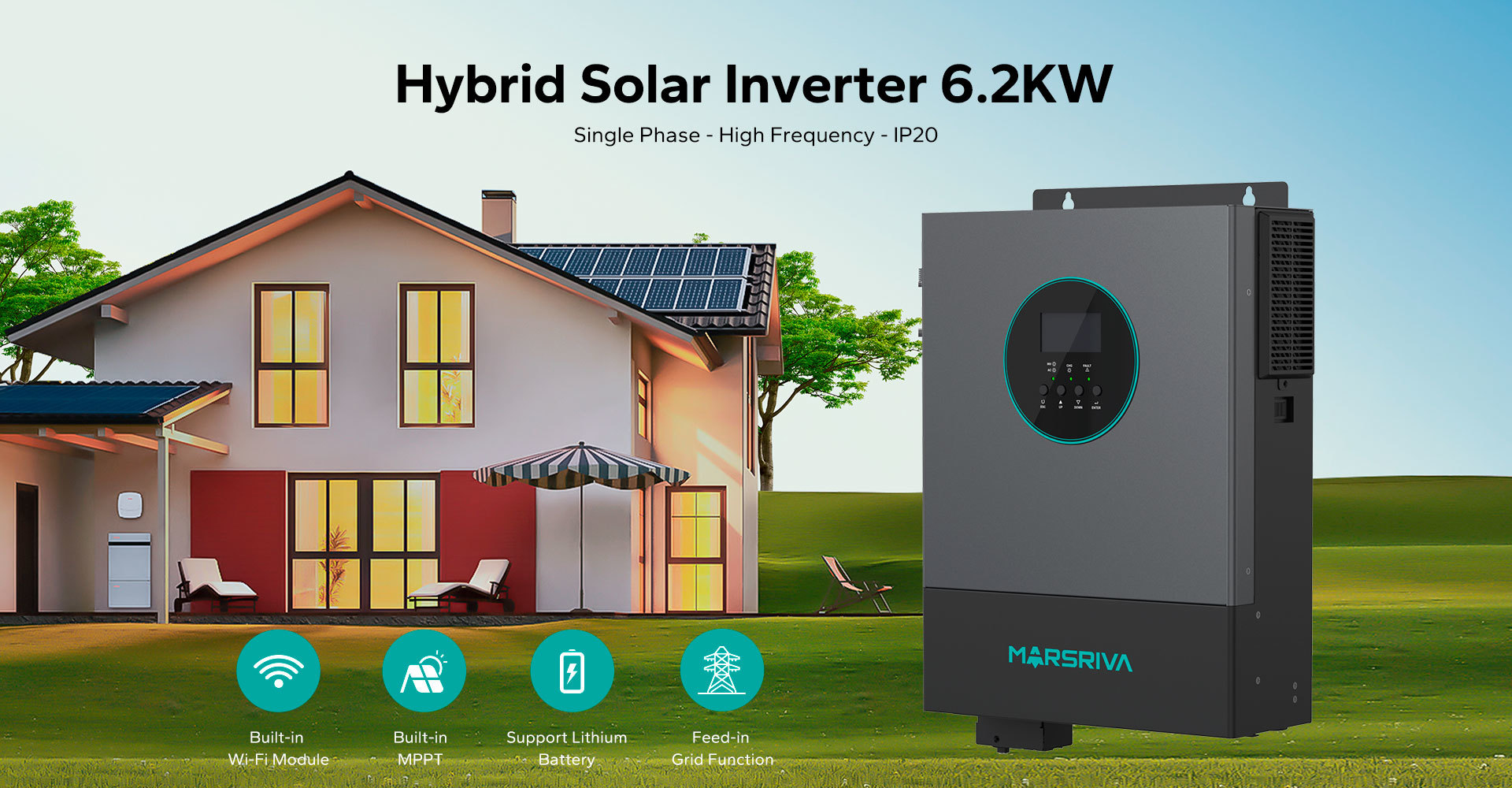

Hybrid Solar Inverter 6.2KW

Model: MR-SPH6200 TWIN
● Wide PV input range, starts from 30VDC
● Built-in communication port for BMS
● Built-in feed-in grid function
● Built-in WiFi with APP for remote monitoring and OTA firmware upgrade
● Maximum charging current 100A
● Battery independent design
● Battery equalization function to optimize battery performance and extend lifecycle
● Built-in anti-dust kit

Leave a message

隐藏域元素占位

Overview
Specifications
Downloads
Support
概要

Hybrid Solar Inverter 6.2KW

Model: MR-SPH6200 TWIN

Expand All

Hybrid Solar Inverter 6.2kW

Model		MR-SPH6200 TWIN
RATED POWER		6200VA / 6200W
Output
Output Voltage Regulation		230VAC ± 5%
Output Power		6200W with PV & battery, 5000W with battery only
AC Output No		Dual Outputs
Surge Power		12400VA
Efficiency (Peak)		93%
Transfer Time		10ms (For PC); 20ms (For Home Appliances)
Waveform		Pure sine wave
Input
Nominal Input Voltage		230VAC
Input Voltage Range (Selectable)		170 – 280VAC (For PC); 90 – 280VAC (For Home Appliances)
Nominal Input Frequency		50Hz / 60Hz (Auto sensing)
Battery
Nominal Battery Voltage		48VDC
Floating Charging Voltage		54VDC
Overcharge Protection		63VDC
AC CHARGING & MPPT SOLAR CHARGING
Solar Charger Type		MPPT
Maximum PV Array Open Circuit Voltage		500VDC
Maximum PV Array Power		6500W
Maximum PV Input Current		18A
MPP Range @ Operating Voltage		90 – 450 VDC (Min. 100VDC without battery connected)
Maximum Solar Charge Current		100A
Maximum AC Charge Current		100A
Maximum Charge Current		100A
PHYSICAL & COMMUNICATION
Dimension, D x W x H (mm)		115 × 300 × 435
Net Weight (kg)		10.4

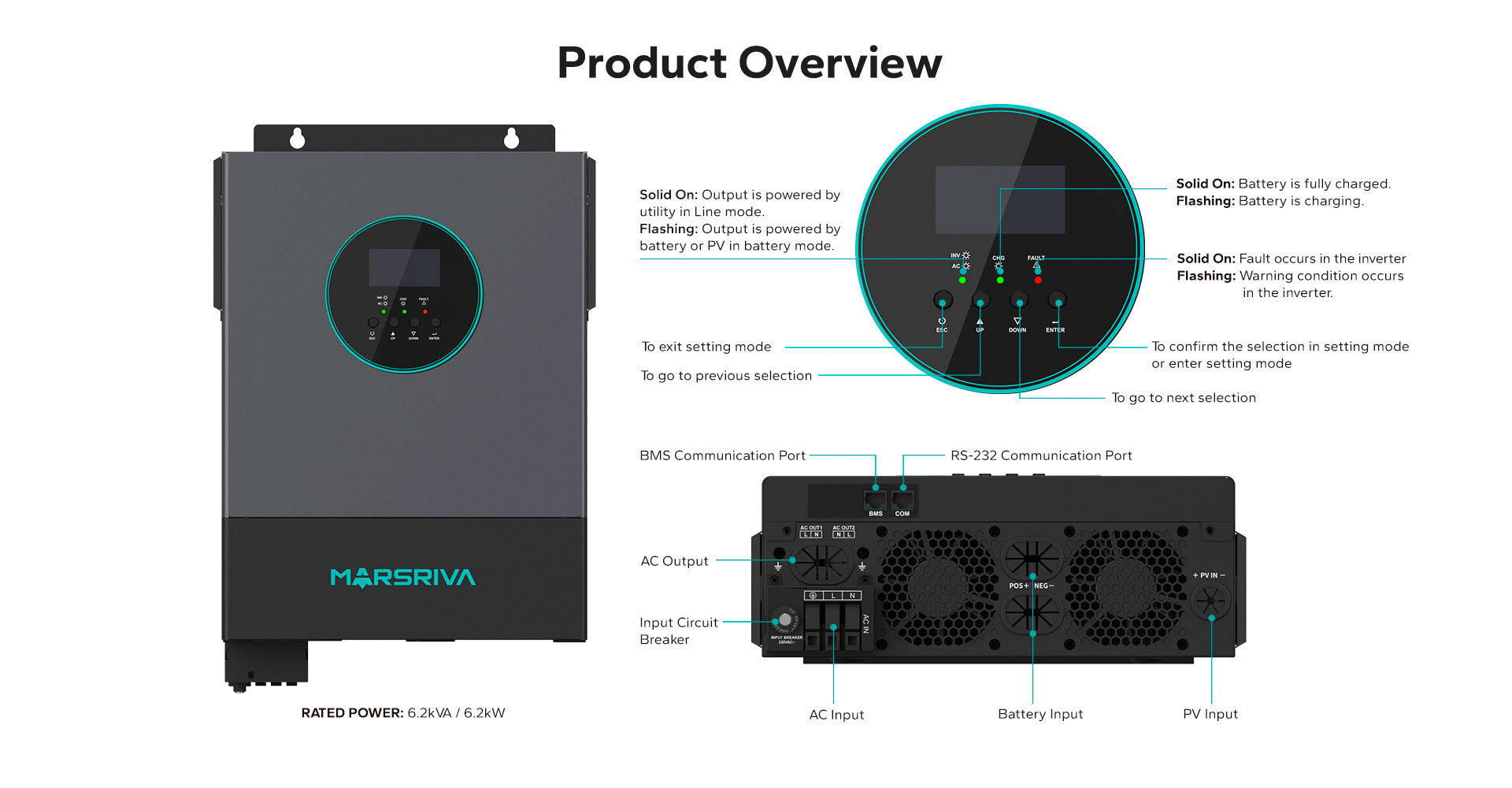

Communication Interface		RS232 / BMS / WiFi

Environment-Hybrid

Environment
Humidity		5% to 95% Relative Humidity (Non-condensing)
Operating Temperature		-10°C to 50°C
Storage Temperature		-15°C to 60°C

Specifications are subject to change without notice, and all product drawings are for reference only. Consult MARSRIVA for the latest design and specifications.
