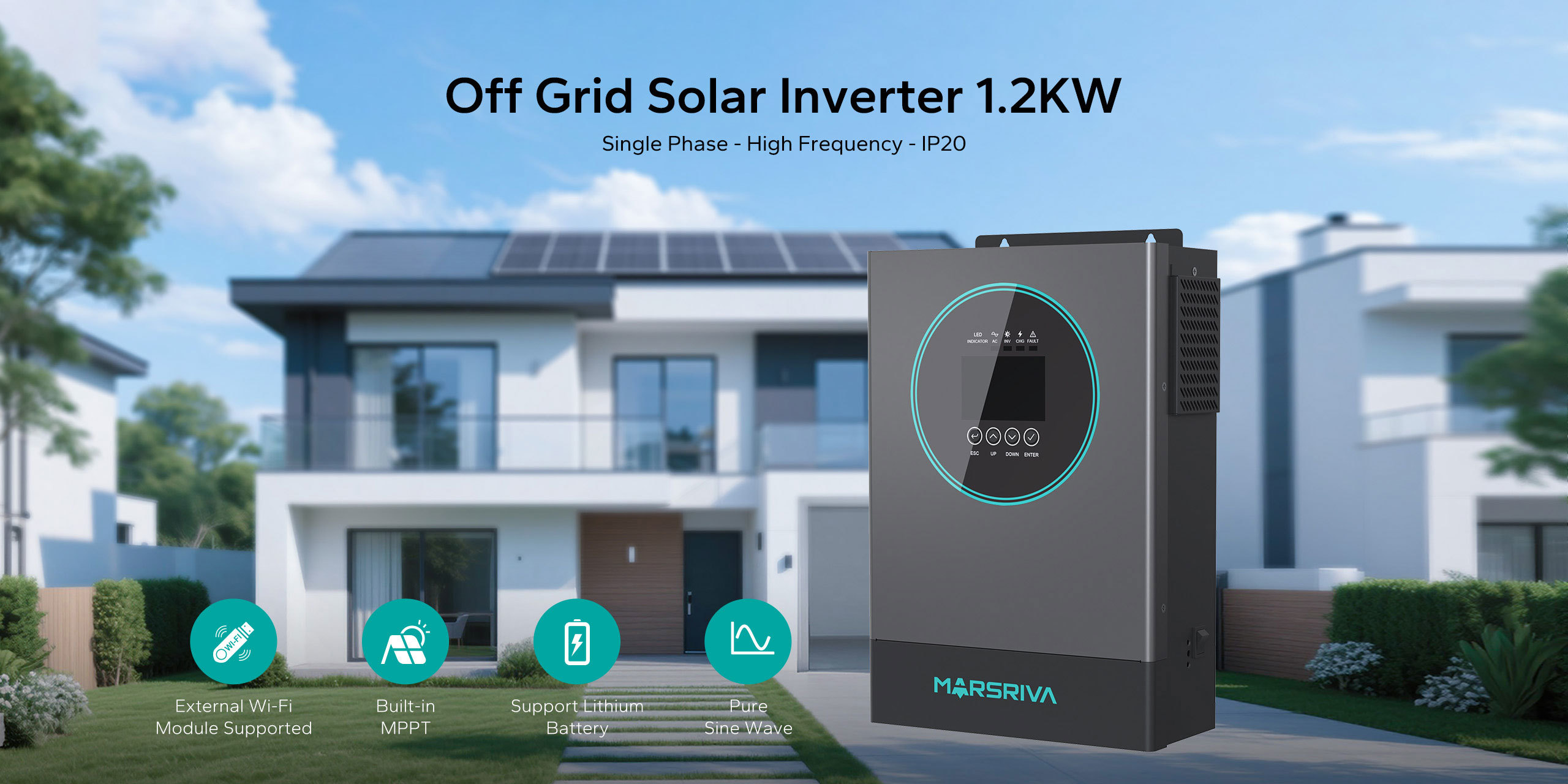

MR-SPF1.2K-LP1-TL20E
Single Phase - IP20 - High Frequency
RATED POWER: 1.2kVA / 1.2kW
-
-
• Rated power 1.2kW, power factor 1
• MPPT ranges 17V~115V 115Voc
• High frequency inverter with small size and light weight
• Pure sine wave AC output

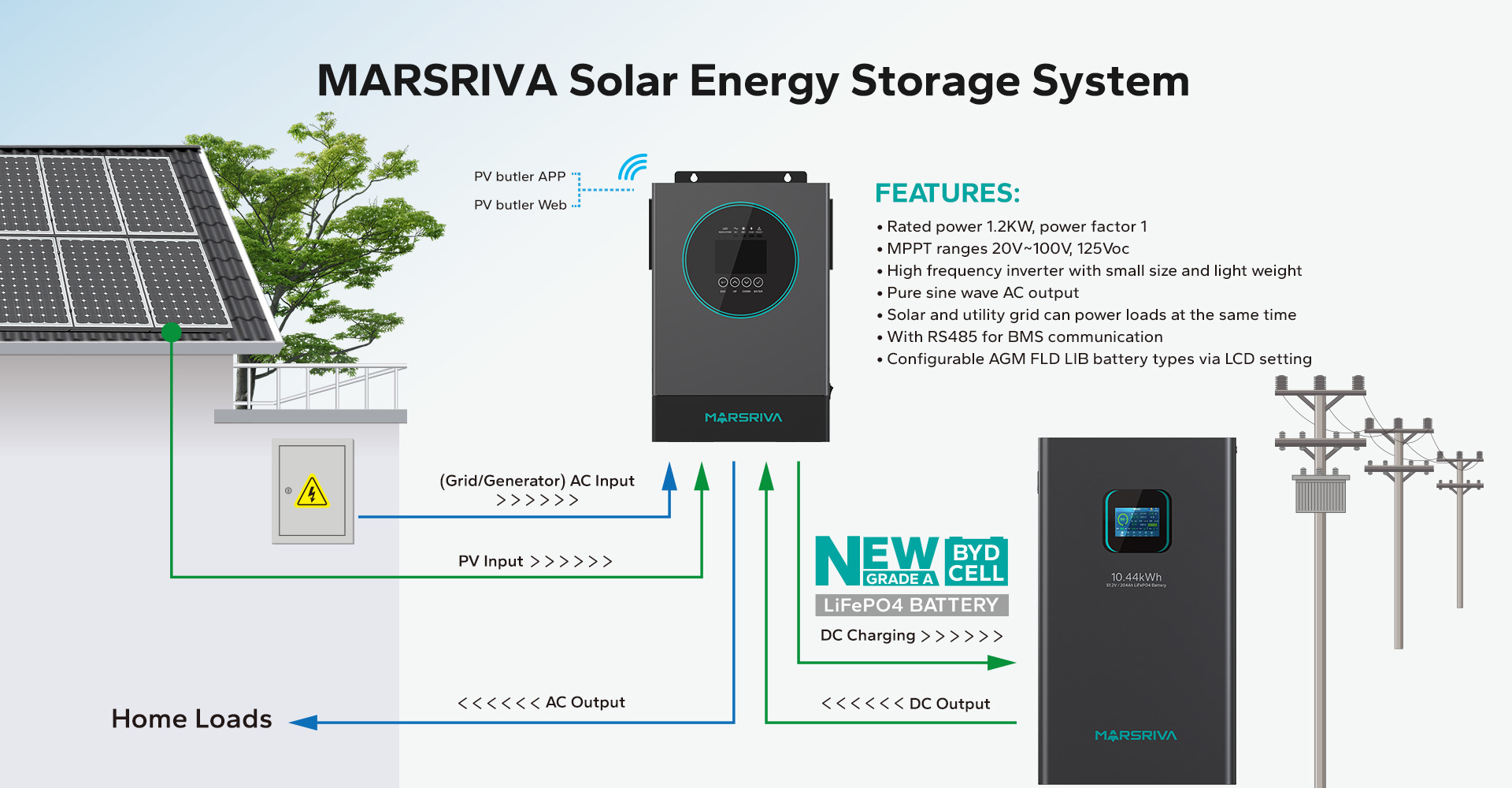

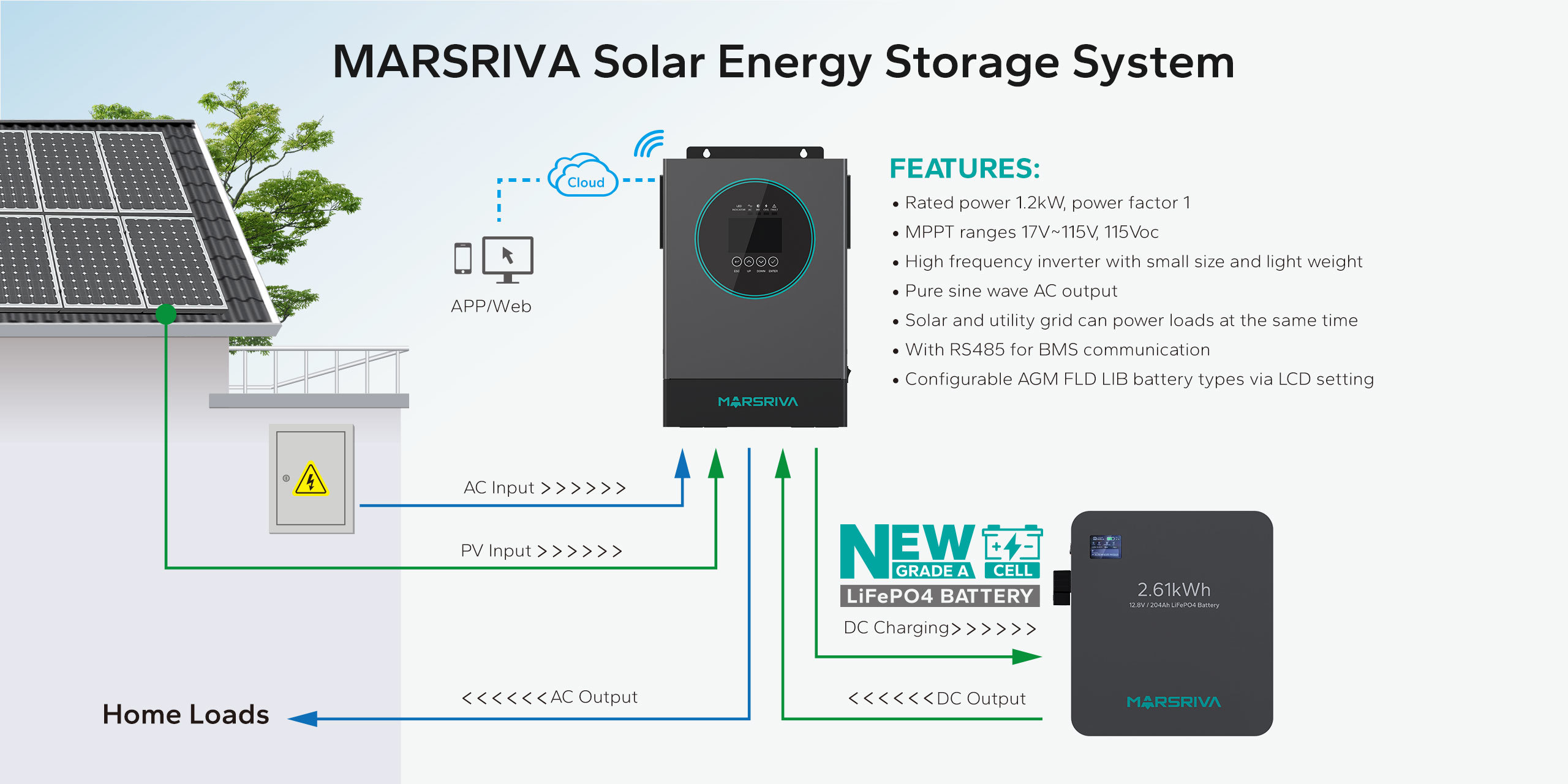

• Solar and utility grid can power loads at the same time
• With RS485 for BMS communication• WiFi module for monitoring
• Configurable AGM FLD LIB battery types via LCD setting
隐藏域元素占位

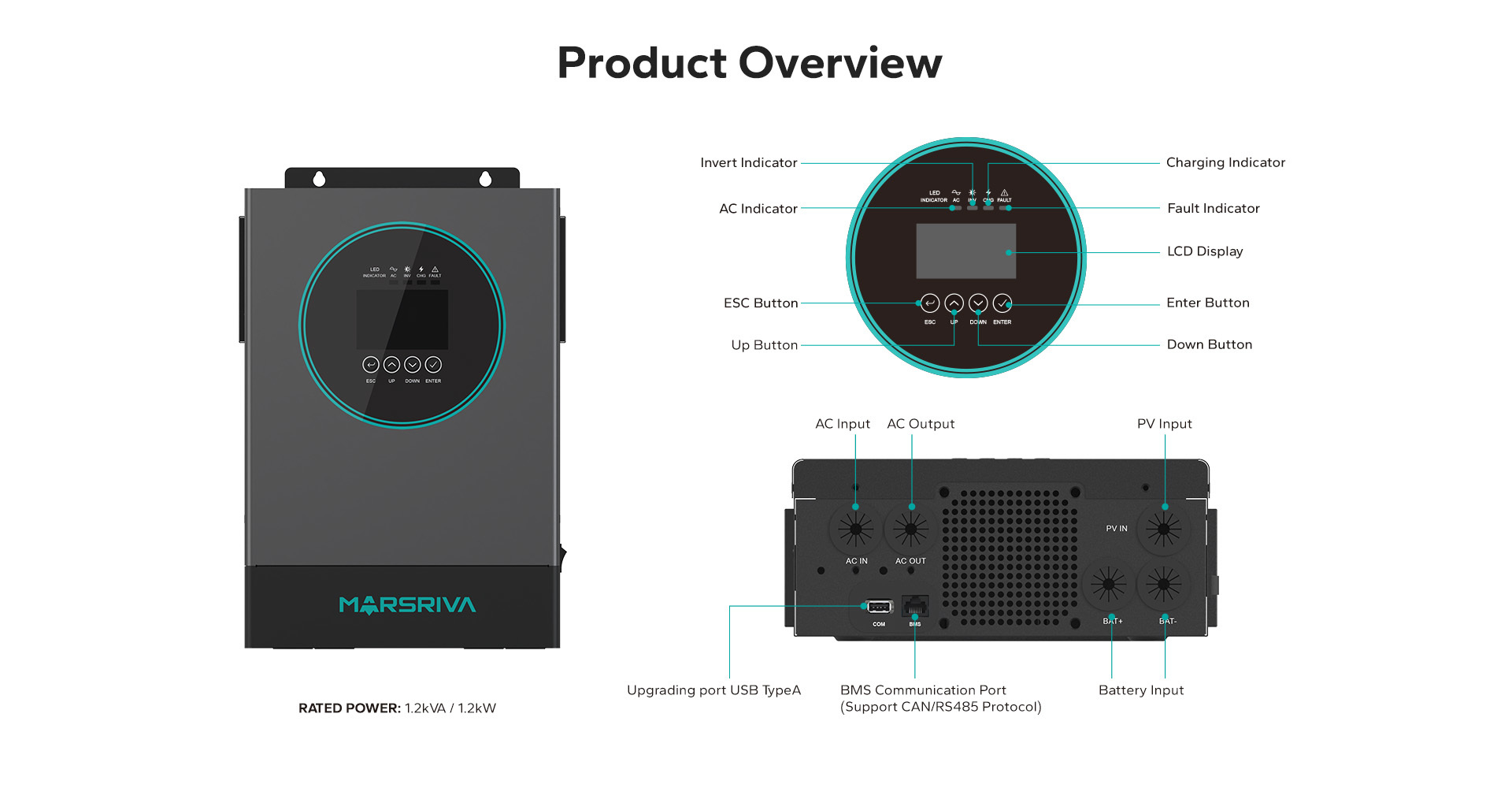

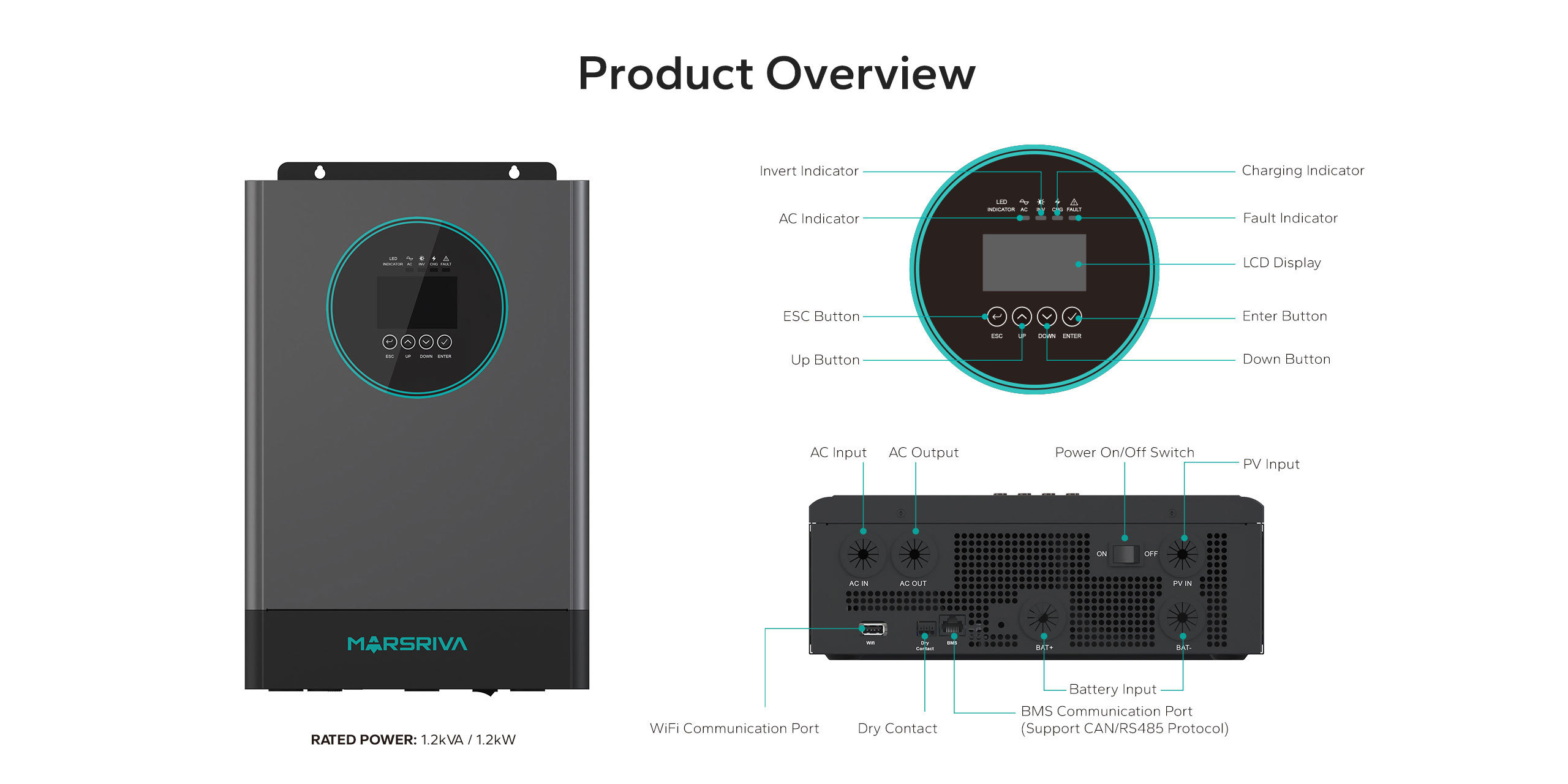

- Overview
- Specifications
- Downloads
- Support
- 概要
Expand All
| Model | MR-SPF1.2K-LP1-TL20E | ||||||
| RATED POWER |
1.2kVA / 1.2kW |
||||||
| INPUT | |||||||
| Nominal Voltage | 208 / 220 / 230 / 240VAC | ||||||
| Voltage Range | 170 – 264VAC (UPS Mode); 90 – 280VAC (APP/GEN Mode) | ||||||
| Frequency Range | 50 / 60Hz ±10Hz (Auto sensing) | ||||||
| OUTPUT | |||||||
| Nominal Output Voltage | 208 / 220 / 230 / 240VAC ± 5% | ||||||
| Output Power | 1.2kW | ||||||
| Surge Power | 2 times of rated power | ||||||
| Nominal Output Frequency | 50 / 60Hz ± 0.1% (Batt. Mode) | ||||||
| Efficiency | Max. 90% | ||||||
| Transfer Time | 10ms (UPS/APP/GEN Mode) | ||||||
| BATTERY | |||||||
| Nominal Battery Voltage | 12VDC | ||||||
| Battery Voltage Range | 10VDC-15VDC | ||||||
| Battery Type | Lead-acid / Lithium / User-defined | ||||||
| AC CHARGING & SOLAR CHARGING | |||||||
| Solar Charger Type | MPPT | ||||||
| Max. PV Input Power | 800W | ||||||
| Max. PV Input Current | 18A | ||||||
| MPPT Voltage Range | 17 – 115VDC (Min. 60VDC without battery connected) | ||||||
| Max. PV Open Circuit Voltage | 115VDC | ||||||
| Max. Solar Charging Current | 50A | ||||||
| Max. AC Charging Current | 50A | ||||||
| Max. Hybrid Charging Current | 100A | ||||||
| PHYSICAL & COMMUNICATION | |||||||
| Dimension, W x H x D (mm) | 237 × 347 × 99 | ||||||
| Net Weight (kg) | 3.5 | ||||||
| Communication Interface | RS485 / CAN / RS232 | ||||||
| ENVIRONMENT | |||||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||||||
| Operating Temperature | -10°C to 60°C | ||||||
| Storage Temperature | -15°C to 60°C | ||||||
Specifications are subject to change without notice, and all product drawings are for reference only.
