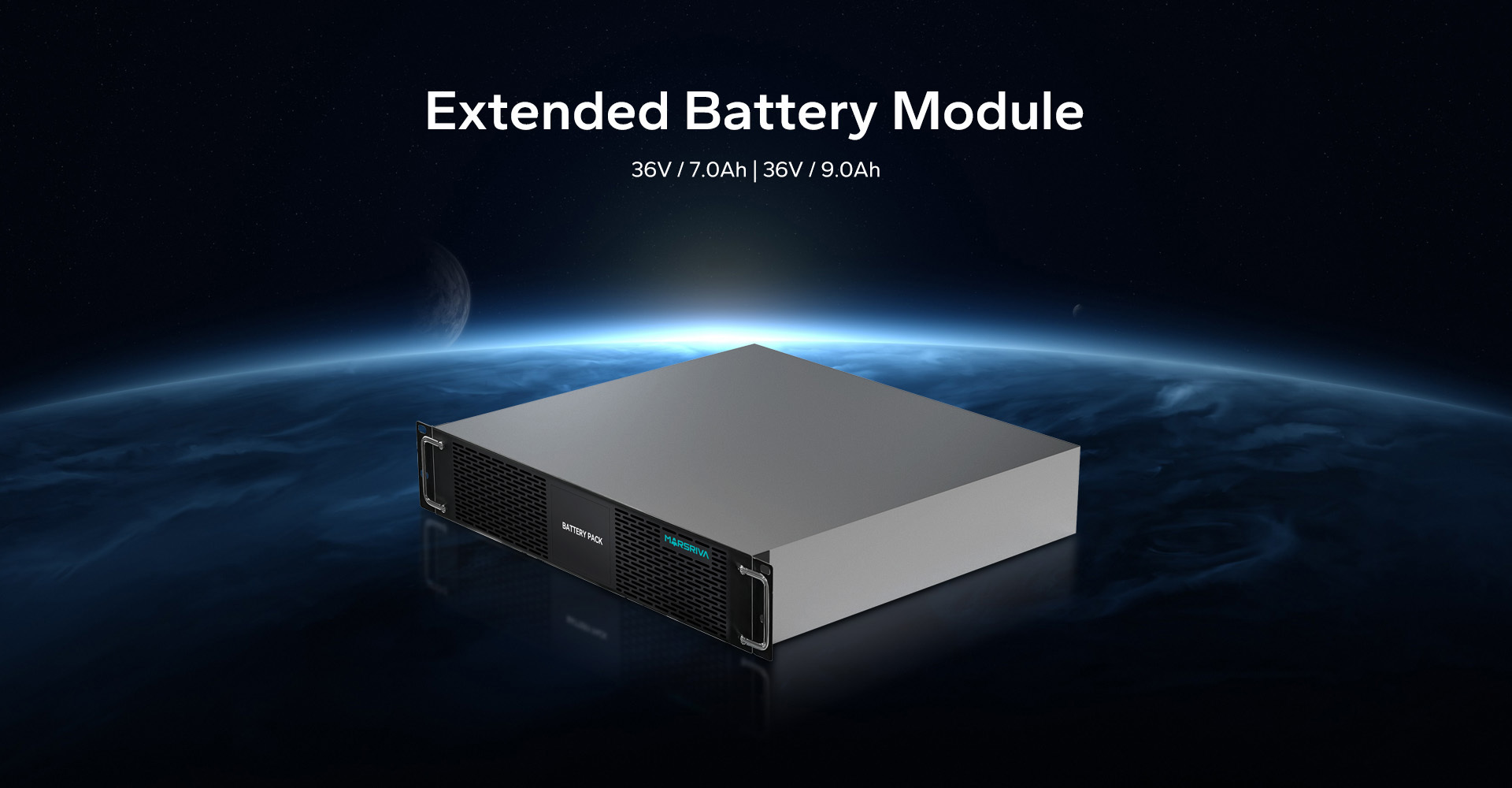

MR-PBC36B-7 ( 9 )

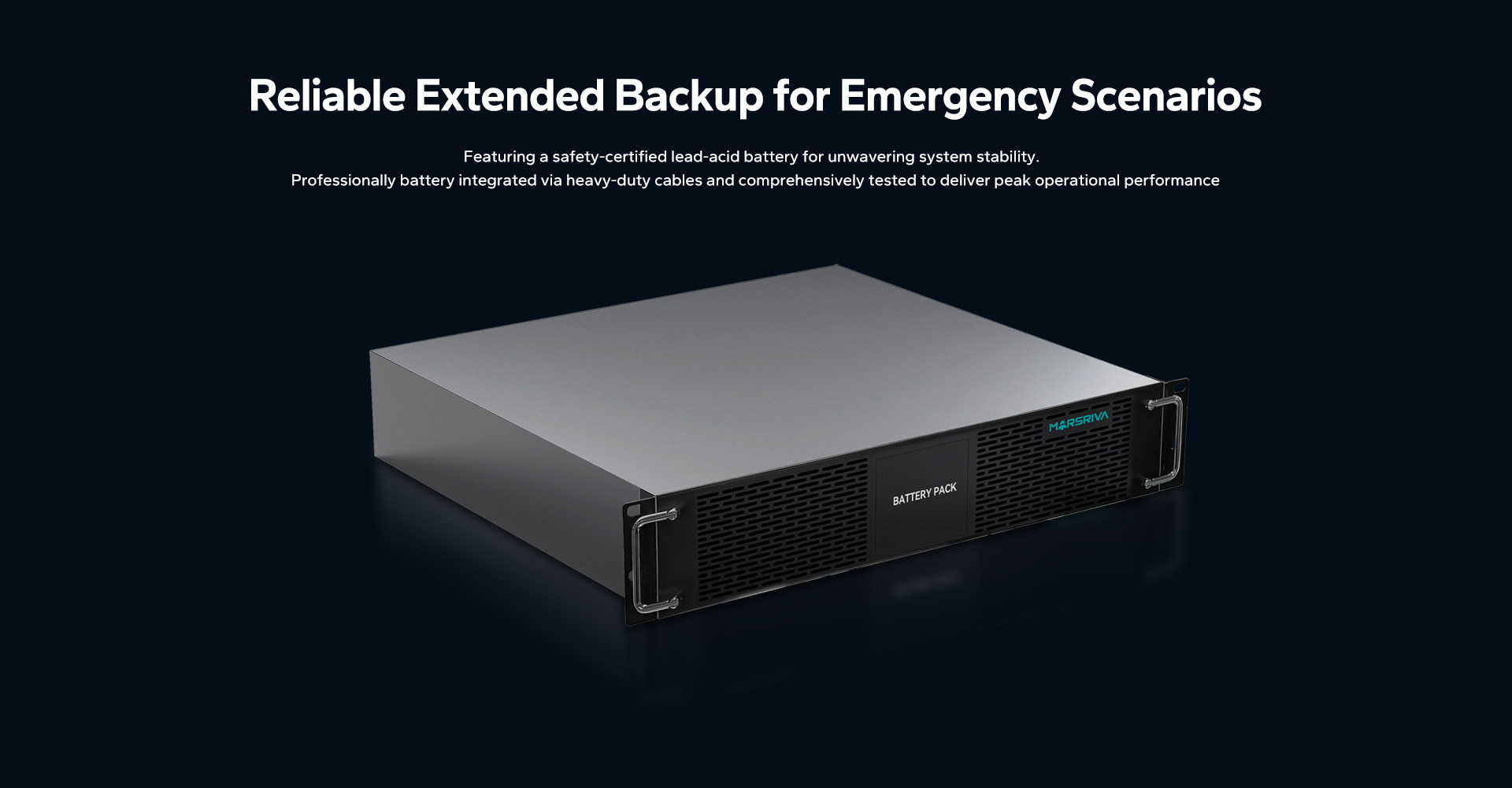

UPS with Battery Pack
36V / 7.0Ah ( 9.0Ah )
-
-
• VRLA battery pack, contains a safe and reliable VRLA battery to ensure the stable operation of the ups system

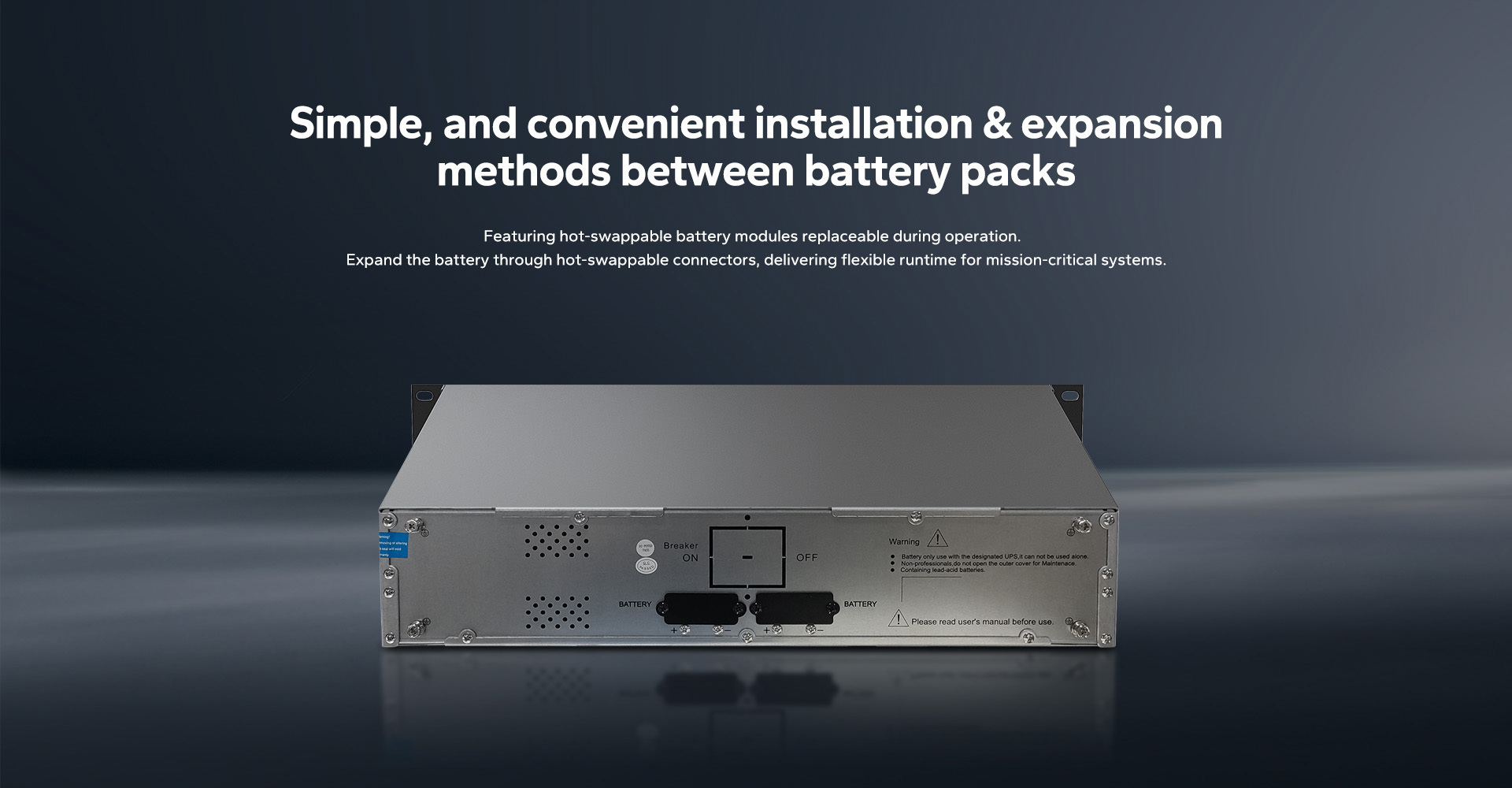

• Modular design, easy for expansion, Extend backup time by adding more battery pack
• Rack / Tower convertible, Provides installation fexibility to suit rack installation or tower standing
• Built in BMS communication port for battery mangement
隐藏域元素占位
- Overview
- Specifications
- Downloads
- Support
- 概要
Expand All
| MODEL | MR-PBC36B-7 | MR-PBC36B-9 | |||||||||||
| COMPATIBLE MODEL | MR-US1K-H, MR-US1KA-H, MR-US1KRT-H, MR-US1KART-H | ||||||||||||
| GENERAL | |||||||||||||
| Voltage / Capacity | 36V / 7.0Ah | 36V / 9.0Ah | |||||||||||
| BATTERY | |||||||||||||
| Battery Size | 12V / 7.0Ah | 12V / 9.0Ah | |||||||||||
| Battery Quantity | 6 PCS | ||||||||||||
| Battery Type | Sealed Lead-Acid | ||||||||||||
| Battery Pack | 3S2P | ||||||||||||
| Design Floating Life | 3 – 5 years | ||||||||||||
| Self Discharge | 2% of capacity declined per month at (25℃) | ||||||||||||
| PHYSICAL | |||||||||||||
| Demensions (D*W*H, mm) | 385 × 438 × 88 | ||||||||||||
| Net Weight (kg) | 18.5 | 20.0 | |||||||||||
| ENVIRONMENTAL | |||||||||||||
| Operating Relative Humidity | 0% – 90 % (non-condensing) | ||||||||||||
| Operating Temperature | 0°C – 40°C | ||||||||||||
| Operating Altitude | 0 – 10,000ft | ||||||||||||
| Storage Relative Humidity | 0% – 95 % (non-condensing) | ||||||||||||
| Storage Temperature | -20°C – 40°C | ||||||||||||
| Storage Altitude | 0 – 50,000ft | ||||||||||||
Specifications are subject to change without notice, and all product drawings are for reference only. Consult MARSRIVA for the latest design and specifications
