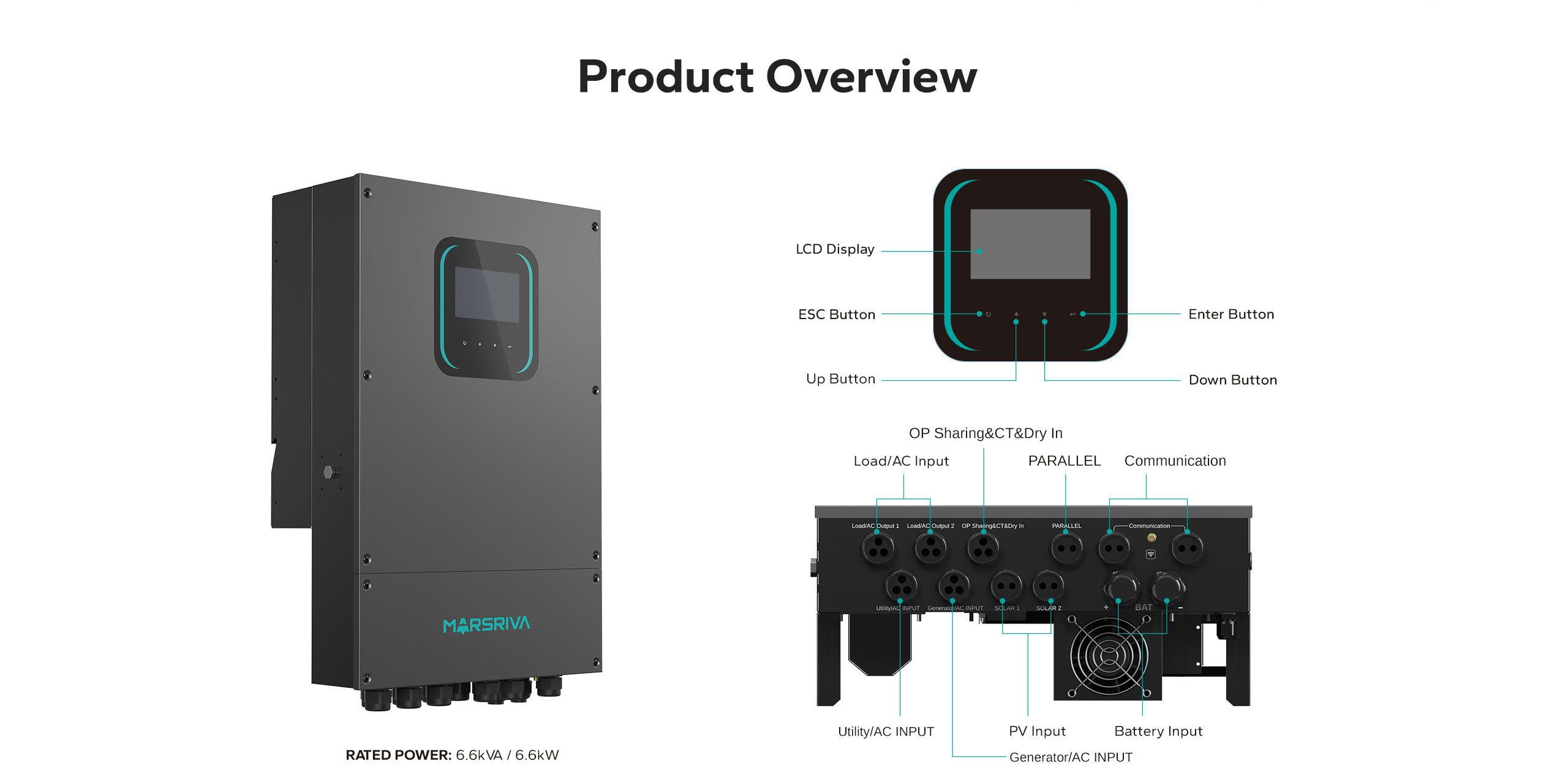

MR-SPH6.6K-LP1-TL65E

Single Phase - IP66 - High Frequency

RATED POWER: 6.6kVA / 6.6kW

隐藏域元素占位

Expand All

MR-SPH6.6K-LP1-TL65E SPECIFICATIONS:

MODEL		MR-SPH6.6K-LP1-TL65E
RATED OUPUT POWER		6600W
PV INPUT (DC)
Max. PV Power		12000W
Max. PV Array Open Circuit Voltage		500VDC
MPPT Range @ Operating Voltage		120VDC ~ 450VDC
Max. PV Array Maximum Imp/per MPPT		2*21A
Max. PV Array Maximum Isc/per MPPT		2*26.25A
Number of MPPT Tracker		2
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage		220VAC / 230VAC / 240VAC
Nominal Output Current		28.7A
Power Factor Range		>0.99
Maximum Conversion Efficiency (DC/AC)		97%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range		90VAC - 300VAC or 170VAC - 300VAC
Transfer Time		< 10ms (for UPS); < 20ms (for home appliances); < 50ms (for parallel system operation)
Rating of AC Transfer Relay		40A
GENERATOR INPUT
Acceptable Input Voltage Range		90VAC - 300VAC
Rating of AC Transfer Relay		40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage		220VAC / 230VAC / 240VAC
Output Waveform		Pure Sine Wave
Efficiency (DC to AC)		93%
BATTERY & CHARGER
Nominal DC Voltage		48VDC
Maximum Charging Current		135A
Maximum Discharging Current		135A
GENERAL
Dimension, D × W × H (mm)		633 × 418 × 192
Net Weight (kgs)		23.5
INTERFACE
Parallel-able		Yes
External Safety Box (Optional)		Yes
Communication		Dry-contact / USB / RS232 / BMS / WiFi Module
ENVIRONMENT
Humidity		0 ~ 95% RH (No condensing)
Operating Temperature		-25°C to 50°C
