SPH10.6K-LP1-TL65E
Single Phase - IP66 - High Frequency
RATED POWER: 10.6kVA / 10.6kW
-
-

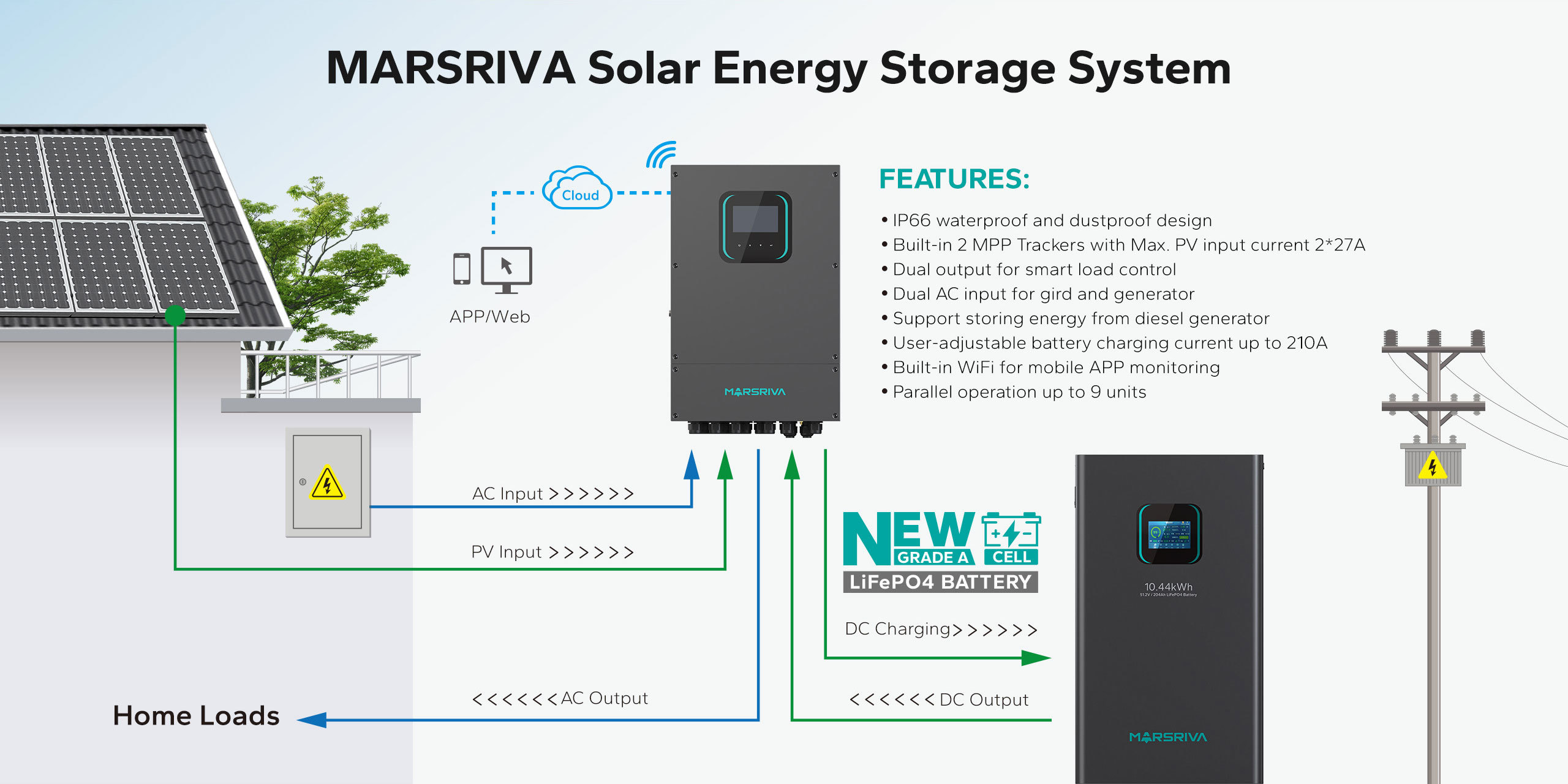

• IP66 waterproof and dustproof design
• Built-in 2 MPP Trackers with Max. PV input current 2*27A
• Dual output for smart load control
• Dual AC input for gird and generator
• Support storing energy from diesel generator
• User-adjustable battery charging current up to 210A
• Built-in WiFi for mobile APP monitoring
• Parallel operation up to 9 units
隐藏域元素占位
- Overview
- Specifications
- Downloads
- Support
- 概要
Expand All
| Model | MR-SPH8K-LP3-TL65E | ||||||
| RATED POWER |
8000VA / 8000W |
||||||
| PV INPUT | |||||||
| Max. PV Input Power | 12000W | ||||||
| Nominal PV Voltage | 720VDC | ||||||
| PV Input Voltage Range | 150VDC – 900VDC | ||||||
| MPPT Voltage Range | 150VDC – 850VDC | ||||||
| Full Load MPPT Voltage Range | 400VDC – 850VDC | ||||||
| Max. PV Input Current | PV1: 15A, PV2: 15A | ||||||
| GRID/AC OUTPUT | |||||||
| Rated Output Power | 8000W | ||||||
| Nominal Output Voltage | 3P/N/PE, 230VAC / 400VAC | ||||||
| Nominal Output Current | 11.6A Per Phase | ||||||
| Nominal Operating Frequency | 50Hz / 60Hz | ||||||
| Power Factor Range | 0.9 lag – 0.9 lead | ||||||
| AC INPUT | |||||||
| Nominal Input Voltage | 3P/N/PE, 230VAC / 400VAC | ||||||
| Maximum Input Current | 40A Per Phase | ||||||
| Nominal Input Frequency | 50Hz / 60Hz | ||||||
| BATTERY | |||||||
| Battery Voltage Range | 40VDC – 60VDC | ||||||
| Max. Charging / Discharging Current | 160ADC | ||||||
| Max. Charging / Discharging Power | 8000W | ||||||
| COMMUNICATION | |||||||
| Embedded Interfaces | RS485 / USB / Dry-contact | ||||||
| External Modules (Optional) | Wi-Fi moudle / GPRS | ||||||
| GENERAL | |||||||
| Dimension, D x W x H (mm) |
246.7 × 504.5 × 703.5 |
||||||
| Net Weight (kg) | 18 | ||||||
| Ambient Temperature | -25°C to 50°C | ||||||
| Protection Degree | IP65 | ||||||
