KP5 Series
Keep Wi-Fi Power On
Output:18W (Max.)
-

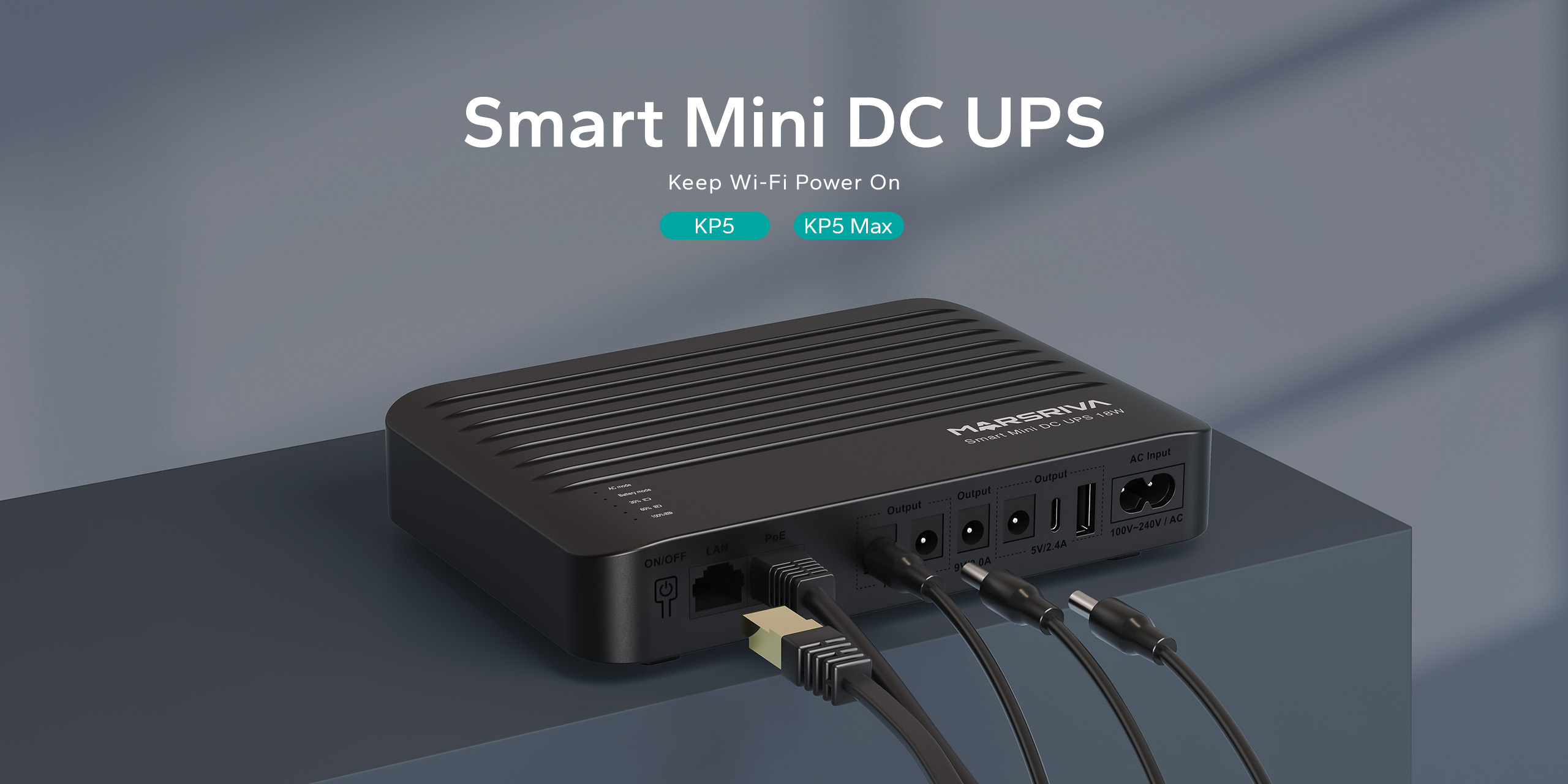

Smart Mini DC UPS
KP5 Series | Keep Wi-Fi Power On
-

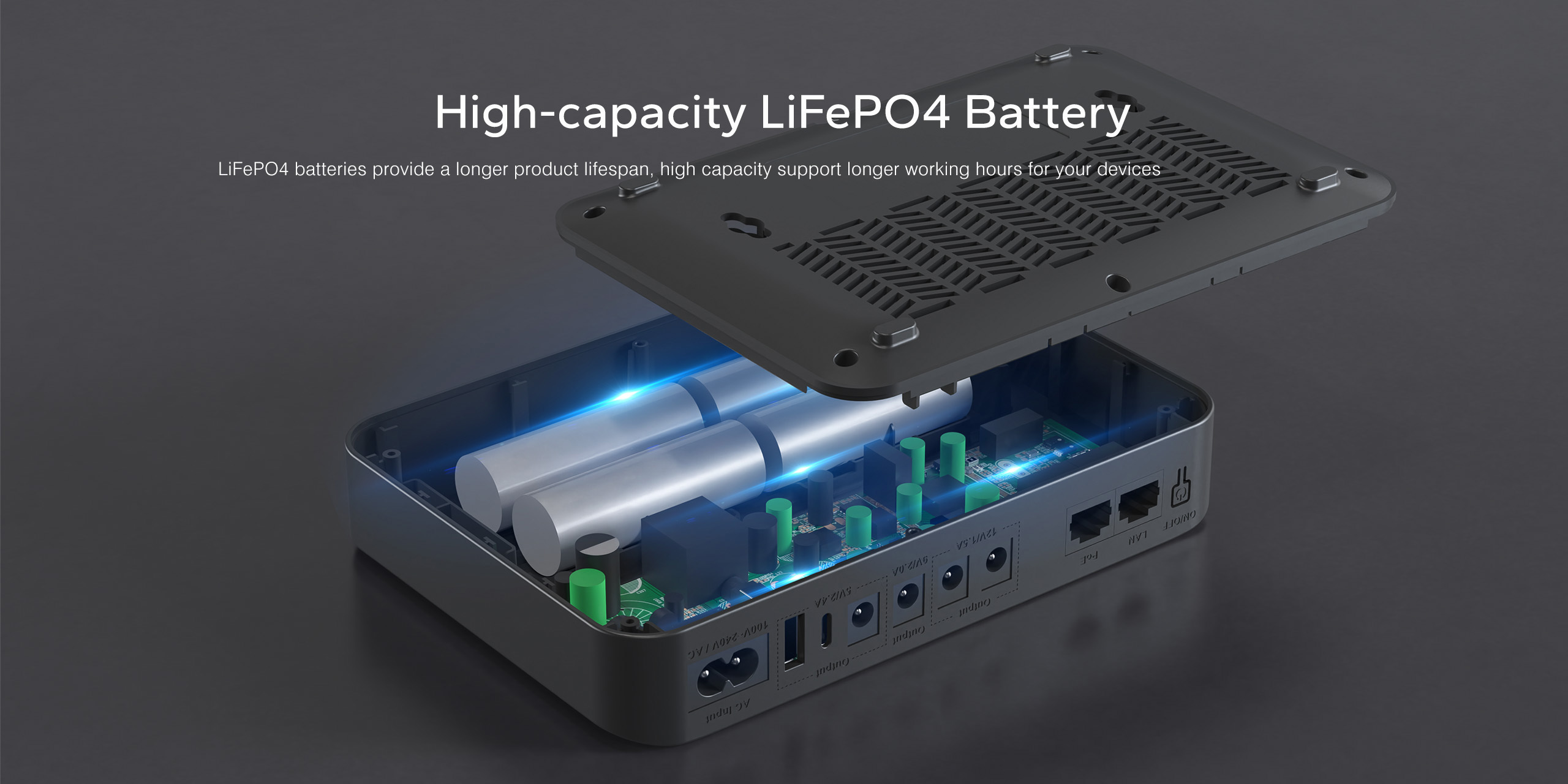

● High-capacity battery provides longer backup time.

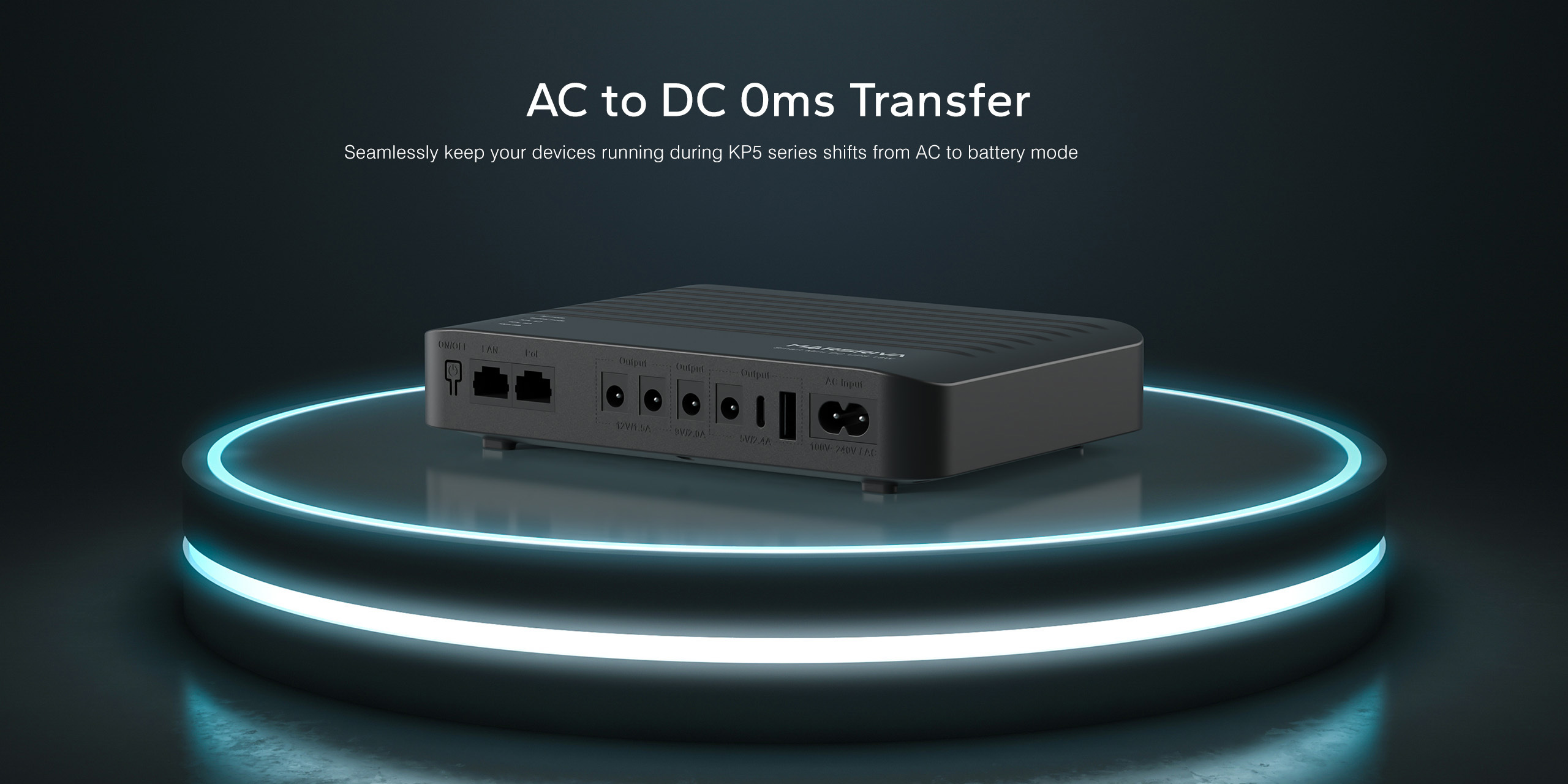

● 0ms transfer technology keeps your devices working when electricity is ON/OFF shifting
● With wall-mount slots on the back, KP5 series can be mounted on wall easily
● Air cooling system provides maximum heat dissipation, ensuring the long-term stability of KP3S
● V-0 flame retardant product housing secures you and your property.
● 18W or 36W output provides better compatibility
隐藏域元素占位
- Overview
- Specifications
- Downloads
- Support
- 概要
-
Smart Mini DC UPS
KP5 Series | Keep Wi-Fi Power On
Expand All
| Model | KP5 | KP5 Max | |||
| Battery Capacity | 32Wh | 64Wh | |||
| Battery Type | LiFePO4 Battery | ||||
| Battery Type | LiFePO4 3.2V / 10000mAh (5000mAh * 2) | LiFePO4 3.2V / 10000mAh (5000mAh * 4) | |||
| Material | ABS + PC | ||||
| Input | 100VAC – 240VAC / 50Hz – 60Hz | ||||
| Output | PoE | 24V / 0.75A | |||
| DC 1 | 12V / 1.5A | ||||
| DC 2 | 12V / 1.5A | ||||
| DC 3 | 9V / 2.0A | ||||
DC 4 | 5V / 2.4A | ||||
| USB-A | 5V / 2.4A | ||||
| USB-C | 5V / 2.4A | ||||
| Total Output | 18W (Max.) | 18W (Max.) | |||
| Net Weight | 445g | 495g | |||
| Unit Dimension | 180mm * 125mm * 35mm (L*W*H) | ||||
| Operate Temperature | UPS Mode | 0℃ – 40℃ | |||
| Battery Mode | -15℃ – 50℃ | ||||
| Operate Humidity | Less than 75%RH | ||||
| Storage | 15℃ – 35℃, 40 – 75%RH | ||||
Specifications are subject to change without notice, all product drawings are for reference only
